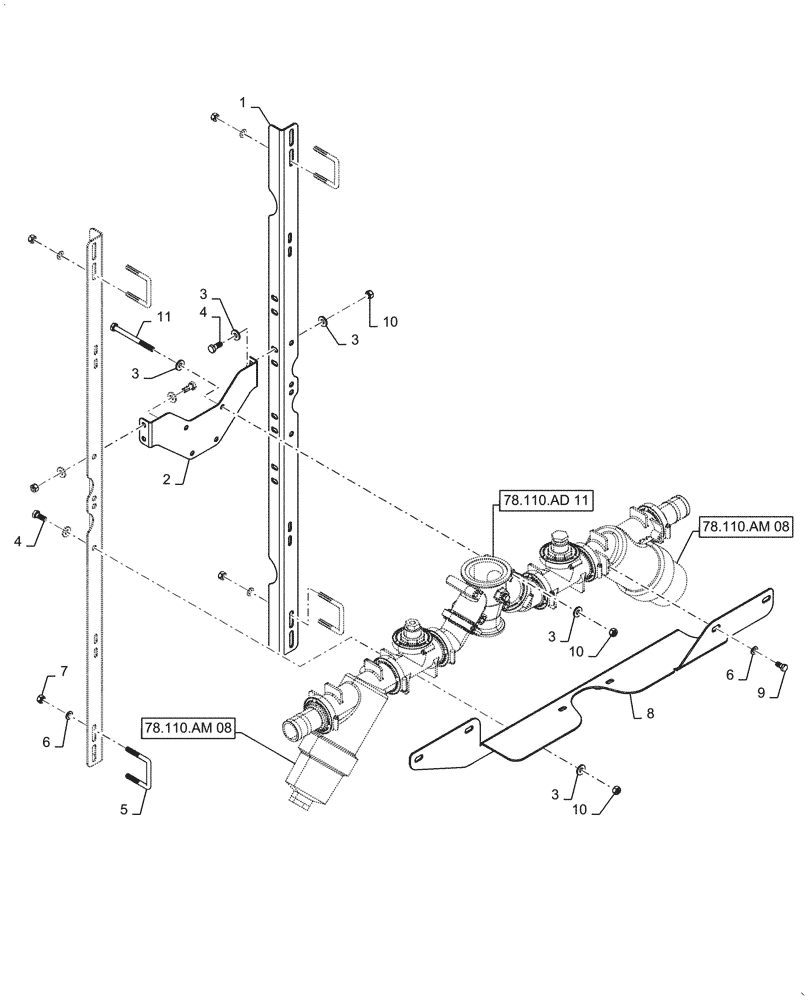

Запчасти Case IH PATRIOT 4440 (78.110.AD[10]) - CENTER SECTION, 2" MANIFOLD MOUNTING, ASN YGT042518 & BSN YGT044001 (78) - SPRAYING

1

47893952

MOUNT

Manifold

2шт.

2

47889236

MOUNT

Manifold

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

20шт.

4

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

6шт.

5

87586548

U-BOLT

SQ BND, 10 x 64ID x 64IL, DOR

4шт.

6

BN50146

WASHER,3/8", Stainless

12шт.

7

87344003

NUT,M10-1.5, 10, DOR

8шт.

8

47889238

MOUNT

Strainers

1шт.

9

87342763

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

10шт.

11

86980412

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

4шт.
