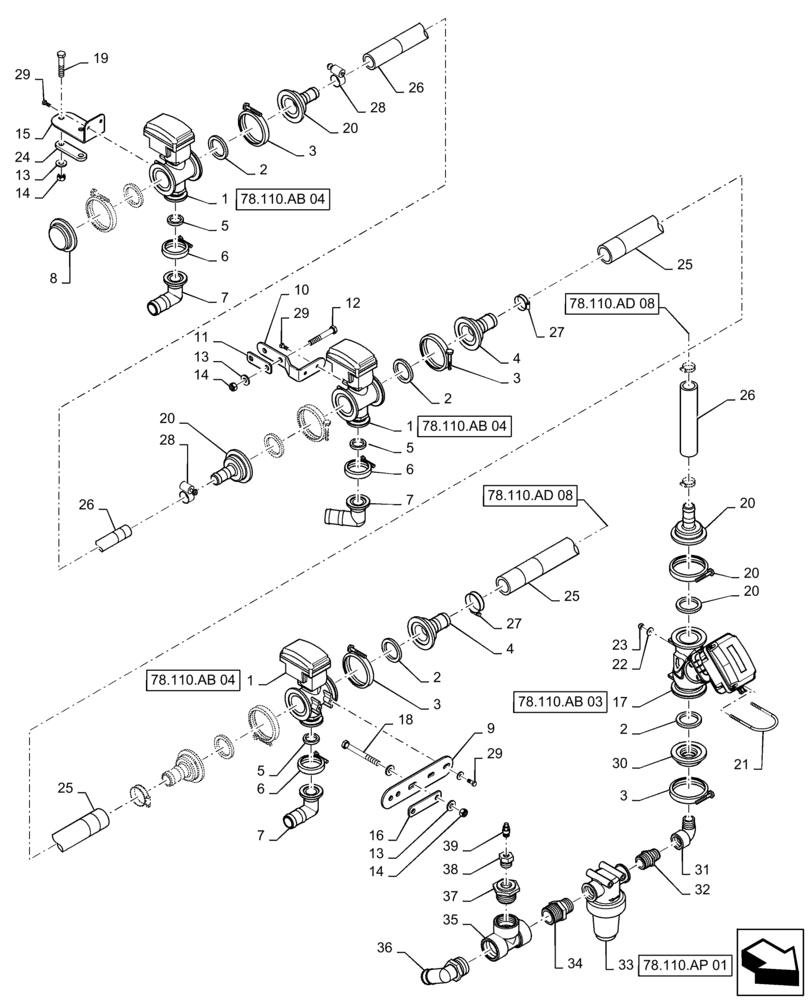

Запчасти Case IH PATRIOT 4440 (78.110.AD[09]) - BOOM PLUMBING, 7 SECTION, LO-FLOW, 120’ BOOM, BSN YGT044001 (78) - SPRAYING

1

87632830

SHUT-OFF VALVE

Electric Plunger, 2.2" Flange x 1" Flange, 3/4" Full Port, Poly

6шт.

See 78.110.AB 04

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

Flange, EPDM

15шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

15шт.

4

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1 1/4" Hose Barb

6шт.

5

BN303205

GASKET

1” Flange, EPDM

6шт.

6

BN303203

CLAMP,1" Flange

1" Flange

6шт.

7

87575511

FITTING,1" Flange x 1-1/4" 90 Degree Hose Barb Elbow

90º, 1" Flange x 1-1/4 Hose Barb, Poly

6шт.

8

BN304317

PLUG,2" Flange, Poly

2" Manifold Flange

2шт.

9

87625607

MOUNT

Inner Boom Valve

2шт.

10

87625608

MOUNTING PARTS

Middle Boom Valve

2шт.

11

87628243

PLATE

1 1/2" Tube

2шт.

12

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

M10-1.5 X 70, 8.8, DOR

4шт.

13

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

14

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

15

87270047

MOUNT

Outer Boom Valve

2шт.

16

87620862

PLATE

Backer, 2 1/2" Tube

2шт.

17

87624339

SHUT-OFF VALVE

"Y" Style, Plunger, 2" Flange Ports

1шт.

See 78.110.AB 03

1шт.

18

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10 1.5 X 100, 8.8, DOR

4шт.

19

87341824

BOLT,Hex, M10 x 170mm, Cl 8.8

M10 x 55 8.8 DOR

4шт.

20

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb, Poly

5шт.

21

BN303201

U-BOLT

1/4" x 2.38"R x 3 - 3/4"

2шт.

22

BN50138

WASHER,1/4", SS

8шт.

23

BN55359

LOCK NUT,1/4"-20, SS

4шт.

24

BN308039

PLATE

Spacer

2шт.

25

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

72.7шт.

26

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

26шт.

27

BN320156

HOSE CLAMP

#24, SST

8шт.

28

87487834

CLAMP,0.81" - 1.5"

#16, SST

6шт.

29

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

12шт.

30

344407A1

PLUG,2" Flange Plug with 3/4" FPT

2" Flange x 3/4" NPT, Poly

1шт.

31

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

3/4" MPT x 3/4" FPT, Poly

1шт.

32

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4", Poly

1шт.

33

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

1шт.

See 78.110.AP 01

1шт.

34

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

1шт.

35

BN73662

TEE

1-1/4", Poly

1шт.

36

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

1шт.

37

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

38

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

39

86986400

SWITCH

Boom Pressure Switch

1шт.
