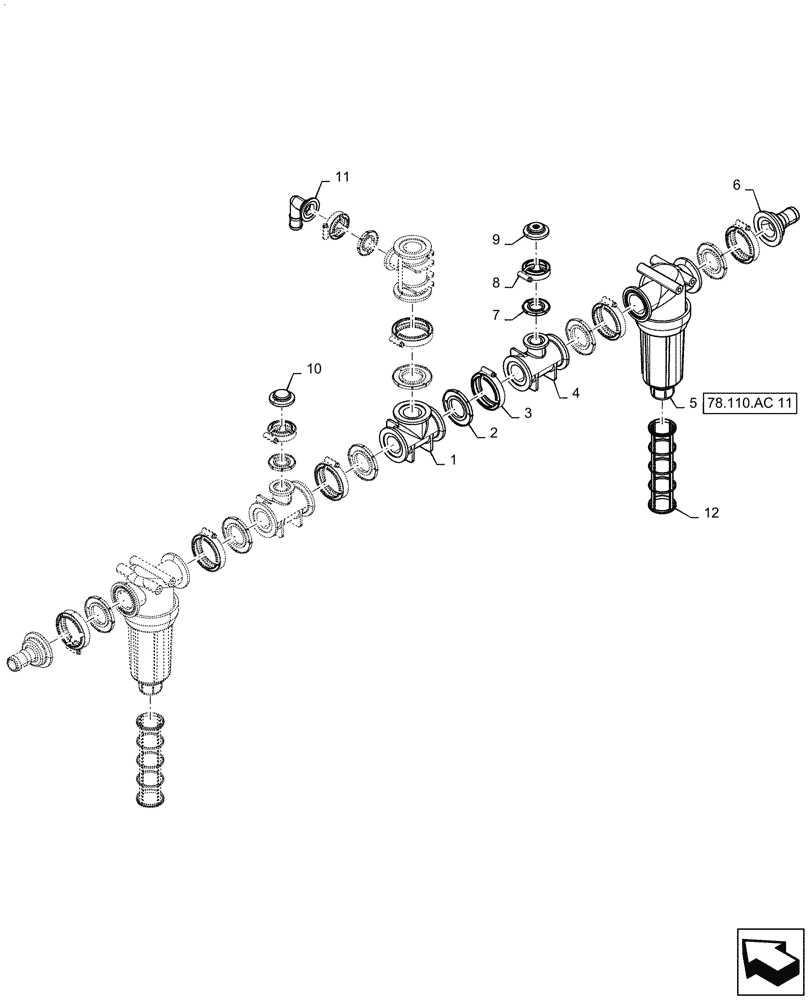

Запчасти Case IH PATRIOT 4440 (78.110.AD[08.6]) - CENTER SECTION MANIFOLD, 7 SECTION LO-FLOW, ASN YGT 044000 (78) - SPRAYING

1

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

1шт.

2

47888705

GASKET

2" Flange, EPDM

7шт.

3

BN303199

CLAMP,2" Flange

7шт.

4

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

3шт.

5

87265489

FILTER STRAINER

2" Flange

2шт.

6

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2шт.

7

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

3шт.

8

BN303203

CLAMP,1" Flange

3шт.

9

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1шт.

10

BN306897

PLUG,1" Flange, Poly

1шт.

11

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

1шт.

12

87265492

SCREEN,80 Mesh, SST, Blue

2шт.
