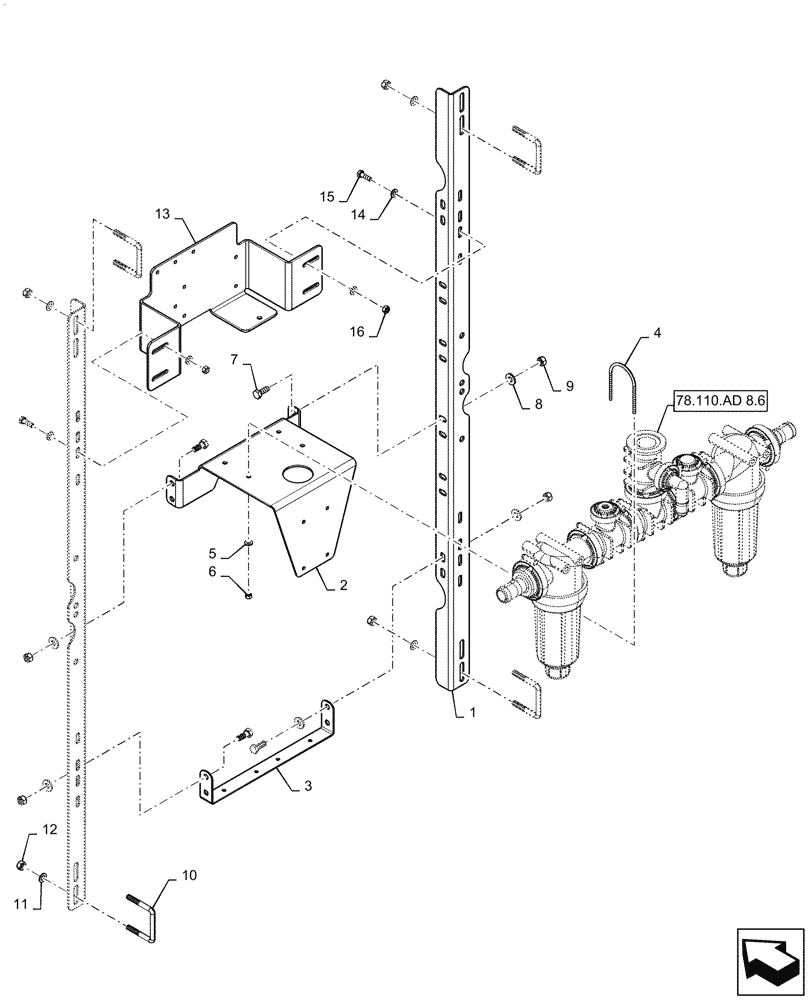

Запчасти Case IH PATRIOT 4440 (78.110.AD[08.5]) - CENTER SECTION MANIFOLD MOUNTING, 7 SECTION LO-FLOW, ASN YGT 044000 (78) - SPRAYING

1

48066342

MOUNT

Verticals

2шт.

2

87663460

MOUNTING PLATE

Manifold

1шт.

3

48004878

BRACKET

Node Mount

1шт.

4

BN303201

U-BOLT

1/4"

2шт.

5

47889236

MOUNT

Center

4шт.

6

87343957

NUT,1/4" - 20

4шт.

7

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

10шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

10

87586548

U-BOLT

M10

4шт.

11

BN50146

WASHER,3/8", Stainless

8шт.

12

87344003

NUT,M10-1.5, 10, DOR

8шт.

13

48065580

BRACKET

Node Mount

1шт.

14

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

8шт.

15

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

16

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.
