Запчасти Case IH PATRIOT 4440 (78.110.AD[06.5]) - CENTER SECTION MANIFOLD PLUMBING, 5 AND 6 SECTION, 90/100, ASN YGT044000 (78) - SPRAYING

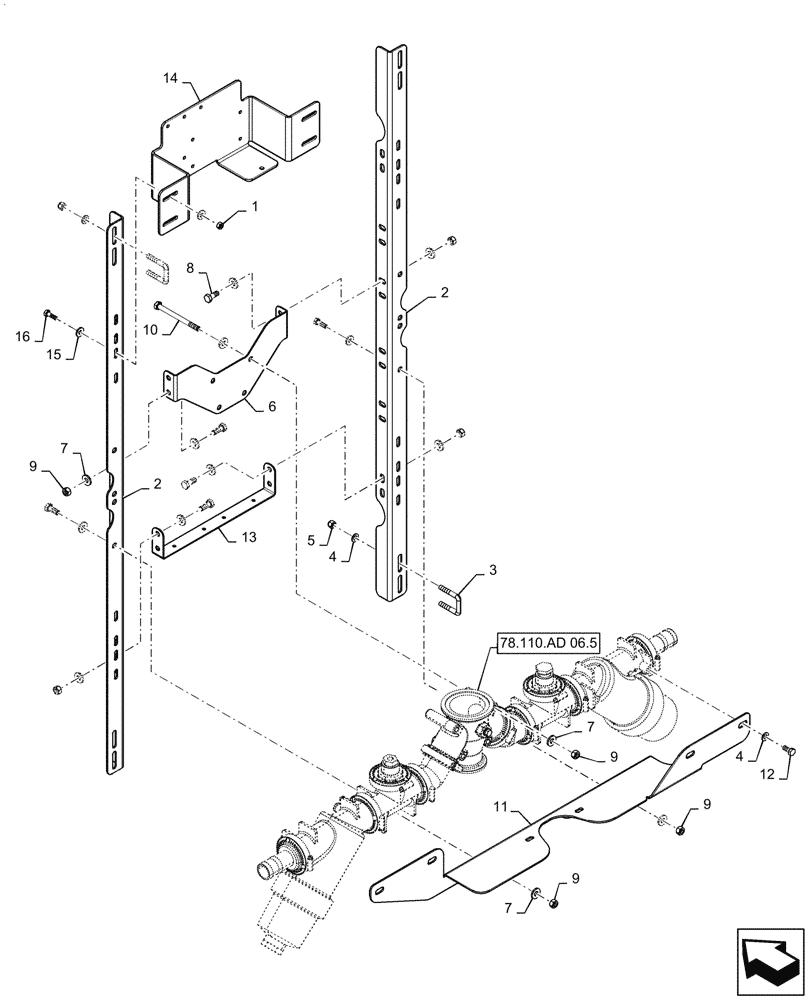

Схема запчастей Case IH PATRIOT 4440 - (78.110.AD[06.5]) - CENTER SECTION MANIFOLD PLUMBING, 5 AND 6 SECTION, 90/100, ASN YGT044000 (78) - SPRAYING
78.110.ad 06.5
15
7
6
9
8
7
4
12
3
14
7
13
2
11
9
5
1
2
4
10
9
9
16

Артикул

Название

Примечание

Количество

1

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

2

48008428

MOUNT

Verticals

2шт.

3

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

4шт.

4

BN50146

WASHER,3/8", Stainless

12шт.

5

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

6

47889236

MOUNT

Center

1шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

28шт.

8

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

10шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

14шт.

10

86980412

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

4шт.

11

47889238

MOUNT

Strainers

1шт.

12

87342763

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

13

48004878

BRACKET

Electrical Component

1шт.

14

48004876

BRACKET

Node Mount

1шт.

15

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

16

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 16
