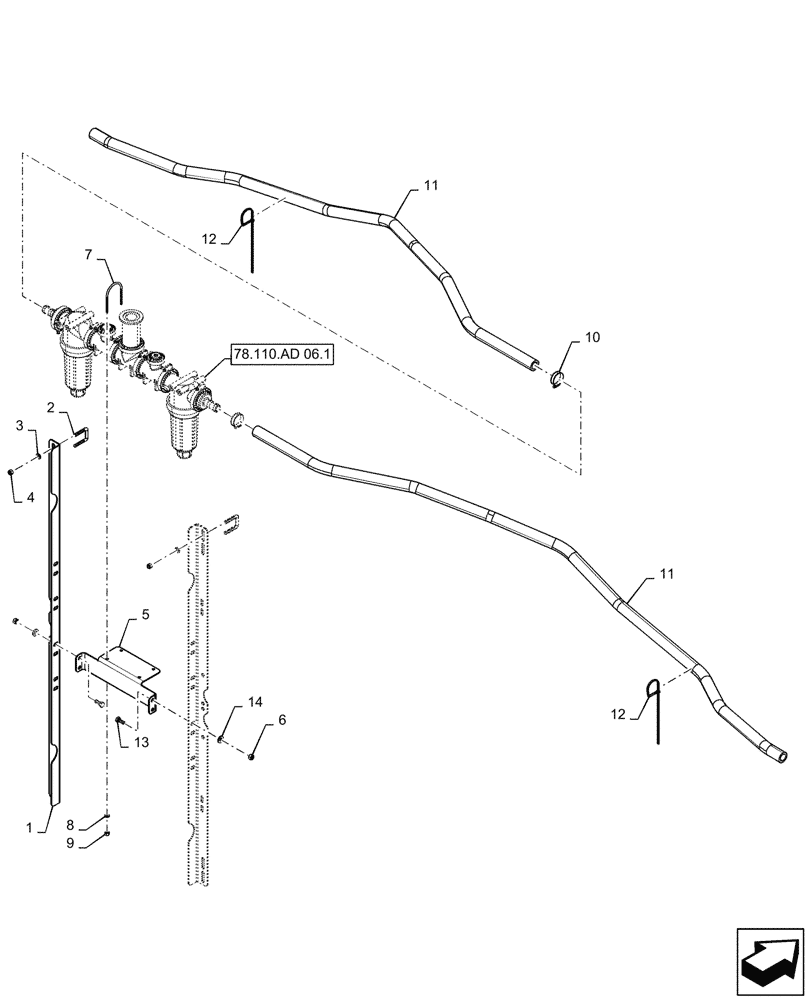

Запчасти Case IH PATRIOT 4440 (78.110.AD[05.1]) - CENTER SECTION, 6 SECTION, LOW FLOW, MANIFOLD MOUNTING, 90/100 BOOM, ASN YGT042518, BSN YGT044001 (78) - SPRAYING

1

47893952

MOUNT

Manifold

2шт.

2

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

3/8"

4шт.

3

BN50146

WASHER,3/8", Stainless

8шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

5

87265454

SUPPORT

Manifold

1шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

7

BN303201

U-BOLT

1/4"

2шт.

8

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

9

87343957

NUT,1/4" - 20

4шт.

10

BN320156

HOSE CLAMP

# 24 SST

2шт.

11

BN53479

HOSE,1.00" ID BULK

1шт.

12

BN570007

STRAP

14" Zip Tie

2шт.

13

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

14

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.
