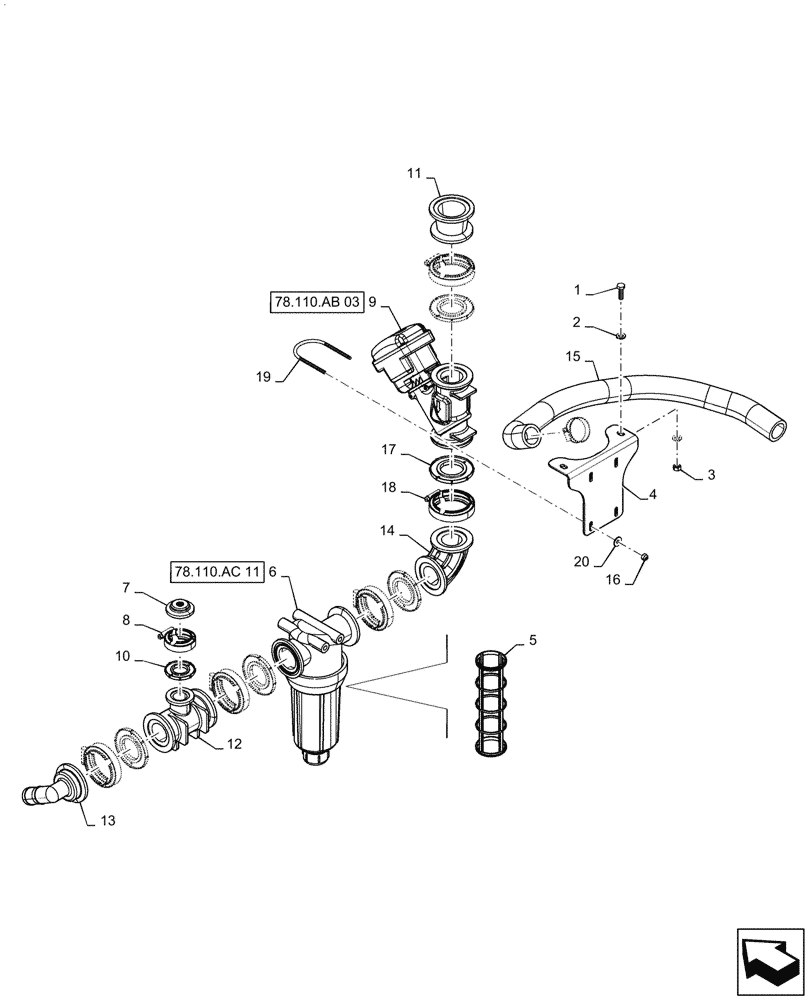

Запчасти Case IH PATRIOT 4440 (78.110.AD[03.1]) - BOOM PLUMBING, CTR SECTION, VALVE / FILTER ASSY, 5 SEC, 90, AND 6 SEC 100, LO FLOW, ASN YGT042518 (78) - SPRAYING

1

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

2

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

3

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

4

47889240

MOUNT

Shut Off Valve

1шт.

5

87265491

SCREEN,50 Mesh, SST, Red

1шт.

6

87265489

FILTER STRAINER

2" Flange

1шт.

See 78.110.AC 11 For Service

1шт.

7

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1шт.

8

BN303203

CLAMP,1" Flange

1шт.

9

87624339

SHUT-OFF VALVE

2" Flange

1шт.

See 78.110.AB 03 For Service

1шт.

10

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1шт.

11

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

1шт.

12

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

1шт.

13

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

1шт.

14

47776943

FITTING,2" Full Port Flange x Flange Sweep

90° Flange

1шт.

15

BN29563

HOSE

1 1/4" Bulk, 16' Roll

1шт.

16

BN55359

LOCK NUT,1/4"-20, SS

12шт.

17

47888705

GASKET

2" Flange

5шт.

18

BN303199

CLAMP,2" Flange

5шт.

19

BN303201

U-BOLT

1/4"

2шт.

20

BN50138

WASHER,1/4", SS

4шт.
