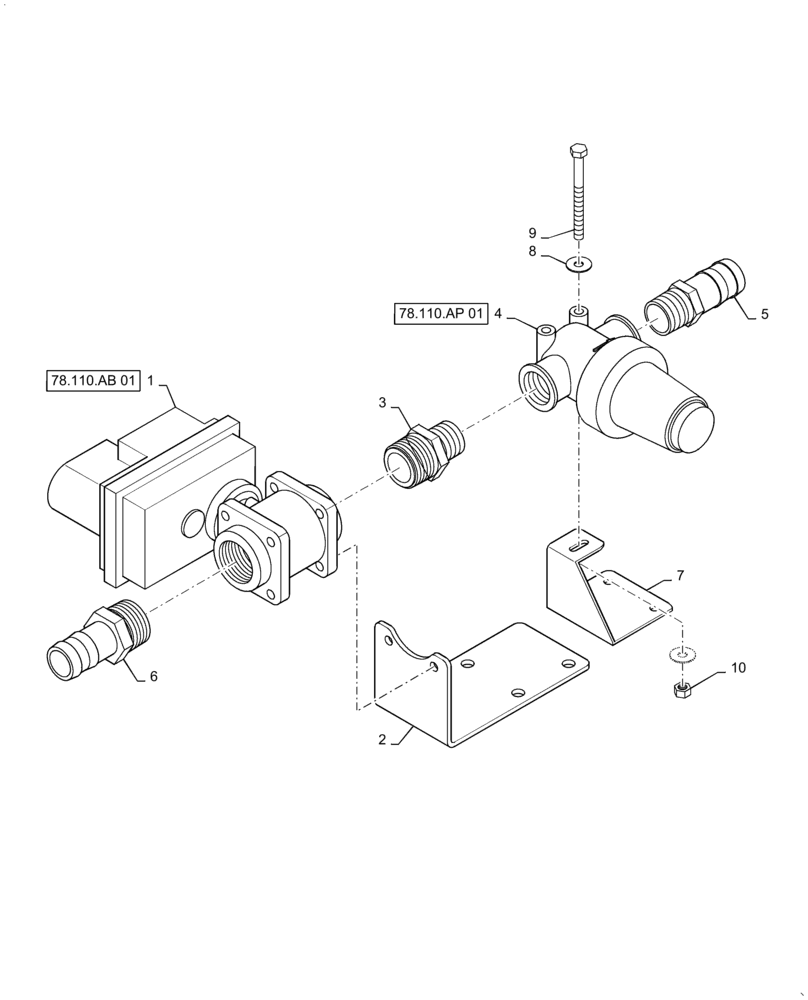

Запчасти Case IH PATRIOT 4440 (78.110.AD[03]) - BOOM PLUMBING, CTR SECTION, 5 SECTION, 90 BOOM, BSN YGT042519 (78) - SPRAYING

1

87268179

VALVE

1.25" Ball, Electric, Boom Shut Off Valve

1шт.

See 78.110.AB 01

1шт.

2

BN319996

BRACKET

NPT Ball Valve

1шт.

3

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1 - 1/2" NPT x 1" NPT, Poly

1шт.

4

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

1шт.

See 78.110.AP 01

1шт.

5

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

6

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1 - 1/4" NPT x 1" Hose Barb, Poly

1шт.

7

BN320060

BRACKET

Strainer, Center Section

1шт.

8

BN50142

WASHER,5/16", Stainless Steel

2шт.

9

BN320109

BOLT,5/16"-18 X 3.50", Stainless

1шт.

10

BN55361

NUT,5/16"-18, Nylon, Stainless

1шт.
