Запчасти Case IH PATRIOT 4440 (78.110.AD[02.2]) - BOOM PLUMBING, CTR SECTION, MANIFOLD TO SPRAYBAR, 90 BOOM, ASN YGT042518 (78) - SPRAYING

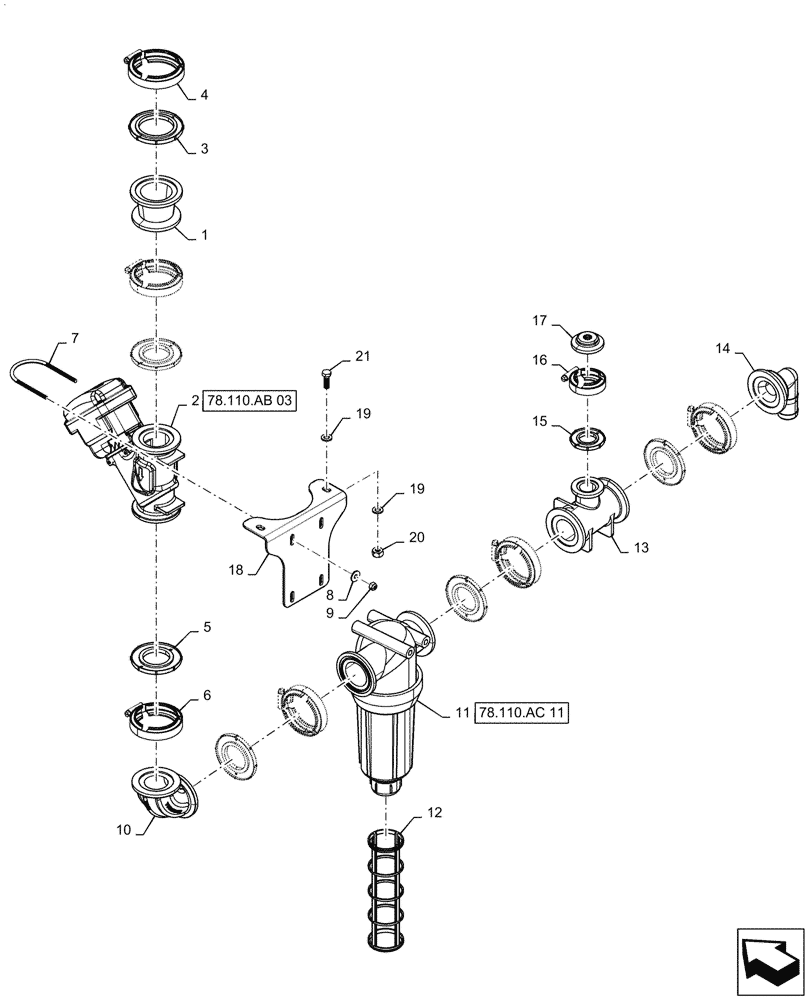

Схема запчастей Case IH PATRIOT 4440 - (78.110.AD[02.2]) - BOOM PLUMBING, CTR SECTION, MANIFOLD TO SPRAYBAR, 90 BOOM, ASN YGT042518 (78) - SPRAYING
78.110.ac 11
16
20
19
9
19
3
18
10
14
2
6
8
12
21
11
4
17
1
13
15
5
7
78.110.ab 03

Артикул

Название

Примечание

Количество

1

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

1шт.

2

87624339

SHUT-OFF VALVE

Complete

1шт.

3

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

1шт.

4

BN313773

CLAMP,2" Full Port

1шт.

5

47888705

GASKET

2"

5шт.

6

BN303199

CLAMP,2" Flange

5шт.

7

BN303201

U-BOLT

1/4" x 2 3/8" Dia x 3 3/4" Long

7шт.

8

BN50138

WASHER,1/4", SS

4шт.

9

BN55359

LOCK NUT,1/4"-20, SS

4шт.

10

47776943

FITTING,2" Full Port Flange x Flange Sweep

90° 2" Flange

1шт.

11

87265489

FILTER STRAINER

Complete, Less Screen

1шт.

12

87265491

SCREEN,50 Mesh, SST, Red

1шт.

13

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

1шт.

14

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

1шт.

15

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1шт.

16

BN303203

CLAMP,1" Flange

1шт.

17

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1шт.

18

47889240

MOUNT

Boom Valve

1шт.

19

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

20

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

21

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 21
