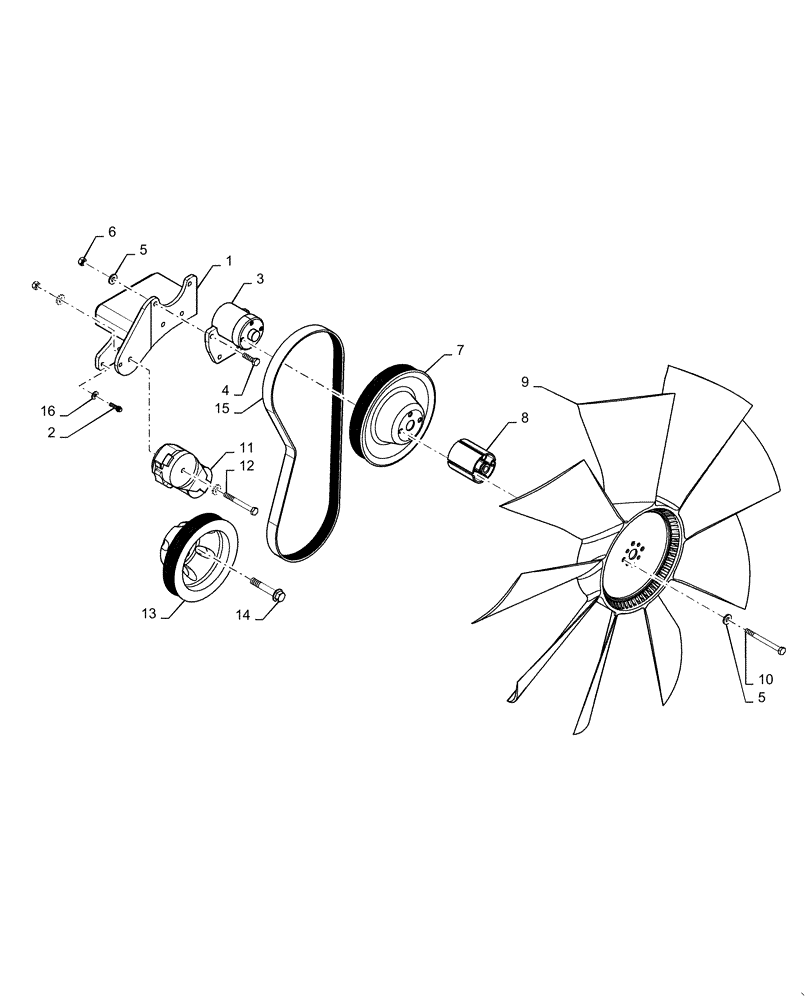

Запчасти Case IH PATRIOT 4440 (10.400.BE[02]) - FAN ASSY (10) - ENGINE

1

84417274

SUPPORT

Fan Drive

1шт.

2

84417255

12 PT SCREW,Flg, M8 x 1.25 x 25mm, Cl 12.9

7шт.

3

47521178

DRIVE

Fan Assembly

1шт.

4

87315279

BOLT,Hex, M10 x 35mm, Cl 10.9

DOR

4шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

5шт.

7

84244661

PULLEY,235.65mm OD

Fan

1шт.

8

87708428

SPACER

Fan

1шт.

9

84418125

FAN

, Serial Range: -YGT044000

1шт.

9

47940528

FAN

, Start Serial: YGT044001

1шт.

10

87342023

BOLT,Hex, M10 x 110mm, Cl 10.9

M10 x 110mm, CL10.9, DOR

4шт.

11

84299866

TENSIONER

Belt

1шт.

12

87682400

BOLT,M10-1.5 x 90, 10.9, DOR

1шт.

13

84423080

CRANKSHAFT PULLEY

1шт.

14

84421928

BOLT,M14-2 X 80, 10.9, DOR, Flange

6шт.

15

84477521

BELT

8 Rib, Poly V

1шт.

16

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

7шт.
