(78.110.AD[01]) - MANIFOLD MOUNTING PARTS, CENTER, 5, & 6 SECTION, 90 / 100 BOOM, BSN YGT042519

Запчасти Case IH PATRIOT 4440 (78.110.AD[01]) - MANIFOLD MOUNTING PARTS, CENTER, 5, & 6 SECTION, 90 / 100 BOOM, BSN YGT042519 (78) - SPRAYING

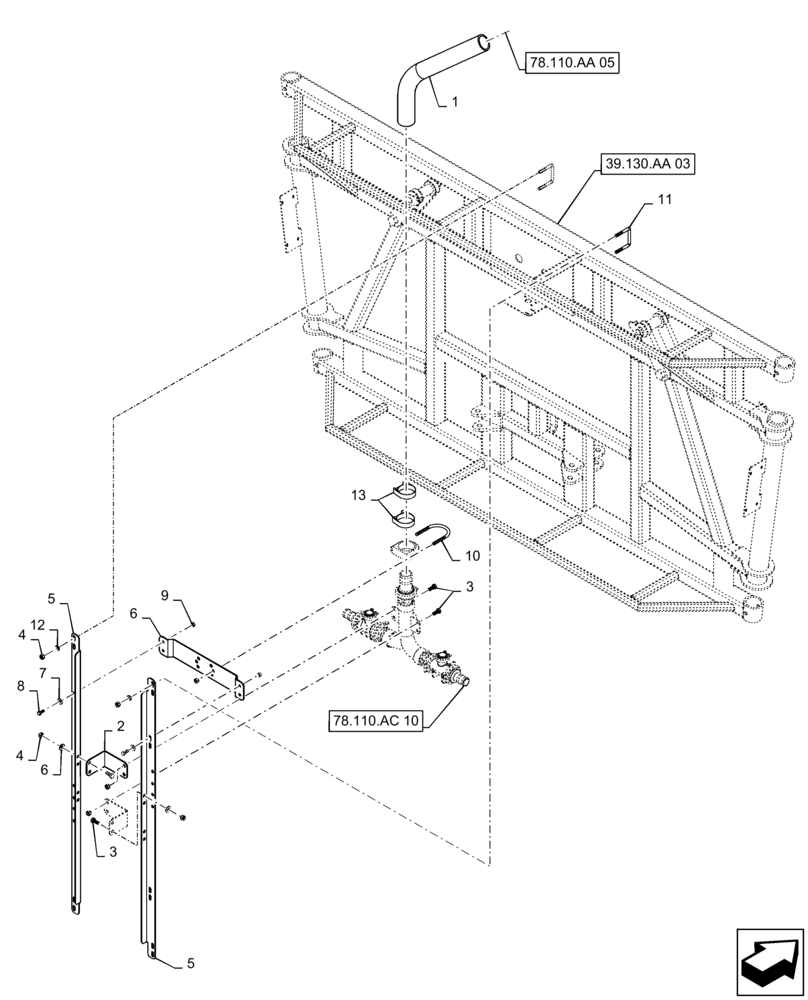

Схема запчастей Case IH PATRIOT 4440 - (78.110.AD[01]) - MANIFOLD MOUNTING PARTS, CENTER, 5, & 6 SECTION, 90 / 100 BOOM, BSN YGT042519 (78) - SPRAYING
3
6
7
2
8
13
10
6
78.110.aa 05
4
11
5
5
4
39.130.aa 03
78.110.ac 10
12
9
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN320784

HOSE,2.00" ID x 13.00'

EPDM, Runs To Hose Barb On RH Side Of Machine

1шт.

2

84174089

BRACKET

3 - Way Manifold

2шт.

3

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

5

87267543

SUPPORT

Manifold, Vertical

2шт.

6

BN325194

BRACKET, SUPPORTING

Clamp, Center Section

1шт.

7

BN50142

WASHER,5/16", Stainless Steel

4шт.

8

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

9

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

10

BN320384

U-BOLT

2" Pipe

1шт.

11

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

Square Bend, 3/8" - 16 x 1.31" Wide x 2" Deep

4шт.

12

BN50146

WASHER,3/8", Stainless

8шт.

13

BN2403358

CLAMP,50.8mm - 63.5mm

T - Bolt Band

2шт.
