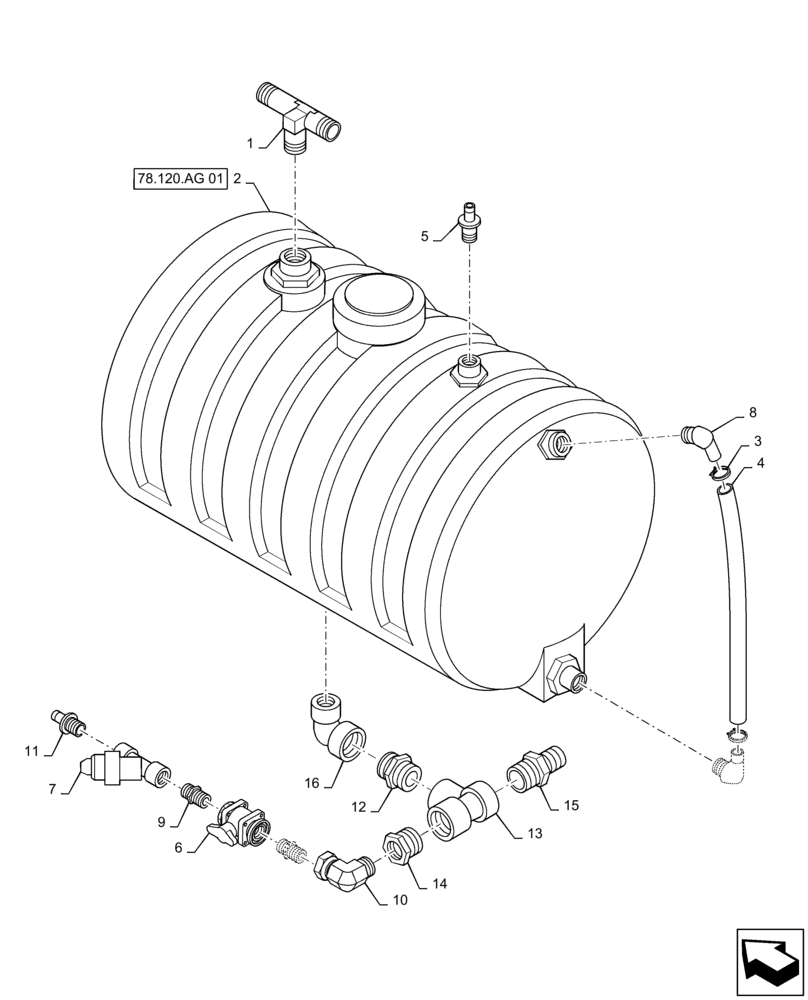

Запчасти Case IH PATRIOT 4440 (78.110.AC[09]) - FOAM MARKER TANK PLUMBING GROUP (78) - SPRAYING

1

BN2390521

FITTING,1" x 1-1/2" 90 Degree Poly Hose Barb Elbow

1" MPT x 1 - 1/2" Hose Barb, Poly

1шт.

2

87270475

TANK

55 Gallon, With Fittings

1шт.

See 78.120.AG 01

1шт.

3

BN310446

HOSE CLAMP

#12, SST

2шт.

4

BN319020

HOSE,0.75" ID x 21.00"

Clear Vinyl, Sight Level

1шт.

5

87265956

FITTING,3/8" Hose Barb x 3/4" Male NPT, Poly

3/8" Hose Barb x 3/4" NPT, Poly

1шт.

6

BN324588

VALVE

Ball 3/4" SU Poly

1шт.

7

BN324892

FILTER STRAINER,3/4" x 3/4" Y Strainer

3/4", "Y", 40 Mesh

1шт.

8

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, Poly

2шт.

9

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

2шт.

10

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

3/4" MPT x 3/4" FPT, Poly

1шт.

11

343436A1

PIPE FITTING,3/4" Male Thread x 3/8" Hose Barb

3/4" MPT x 3/8" Hose Barb, Poly

1шт.

12

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 - 1/2" Short Poly

1шт.

13

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1 - 1/2" NPT, Poly

1шт.

14

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1 - 1/2" x 3/4" Reducer, Poly

1шт.

15

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 - 1/2"

1шт.

16

BN73730

ELBOW,1-1/2", Poly

Straight, 1 - 1/2" Poly

1шт.
