(78.110.AC[08.1]) - THROTTLE VALVE PLUMBING, LO-FLOW, ASN YGT042518

Запчасти Case IH PATRIOT 4440 (78.110.AC[08.1]) - THROTTLE VALVE PLUMBING, LO-FLOW, ASN YGT042518 (78) - SPRAYING

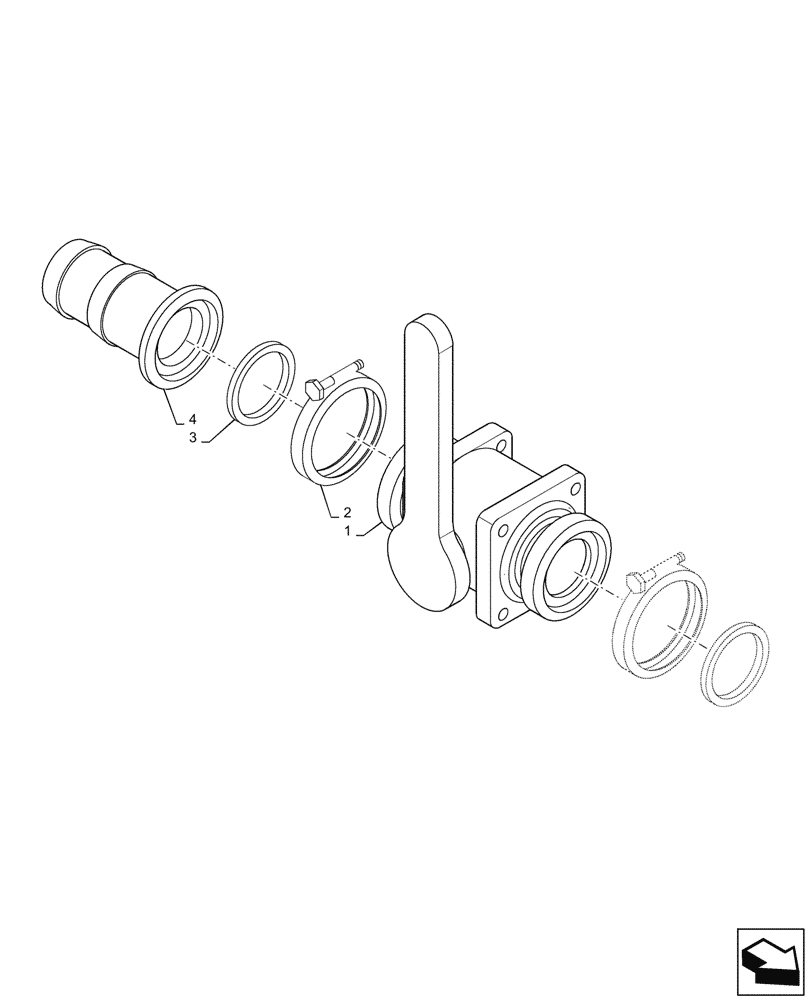

Схема запчастей Case IH PATRIOT 4440 - (78.110.AC[08.1]) - THROTTLE VALVE PLUMBING, LO-FLOW, ASN YGT042518 (78) - SPRAYING
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47902016

VALVE

Throttle, 2" Flange, Start Serial: YGT042519

1шт.

2

47888705

GASKET

2" Flange, Start Serial: YGT042519

2шт.

3

BN303199

CLAMP,2" Flange

, Start Serial: YGT042519

2шт.

4

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

, Start Serial: YGT042519

1шт.

Выбрано товаров: 4
