(78.110.AC[06]) - MAIN PLUMBING STRAINER, STANDARD FLOW, BSN YGT042519

Запчасти Case IH PATRIOT 4440 (78.110.AC[06]) - MAIN PLUMBING STRAINER, STANDARD FLOW, BSN YGT042519 (78) - SPRAYING

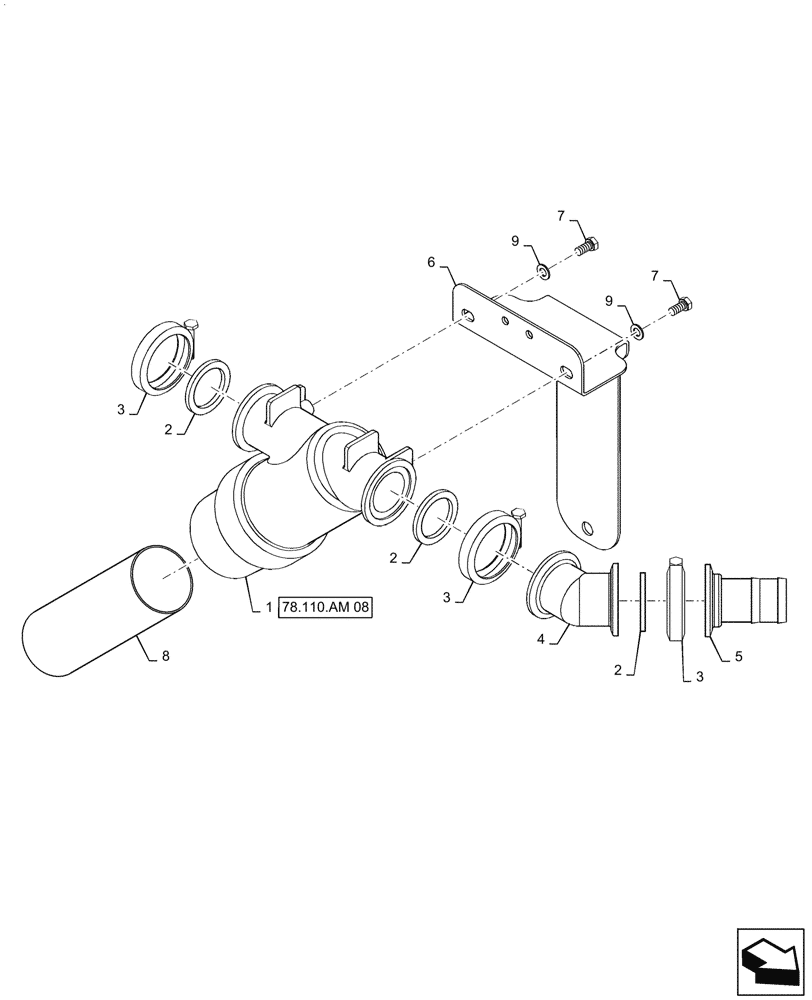

Схема запчастей Case IH PATRIOT 4440 - (78.110.AC[06]) - MAIN PLUMBING STRAINER, STANDARD FLOW, BSN YGT042519 (78) - SPRAYING
78.110.am 08
3
9
2
7
4
9
2
6
1
2
7
8
5
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47646606

FILTER STRAINER,STRAINER, FILTER, 2.2FLB,

"Y" Style, 2" Full Port Flange, No Screen

1шт.

See 78.110.AM 08

1шт.

2

BN313772

GASKET,2" Full Port, EPDM

3шт.

3

BN313773

CLAMP,2" Full Port

3шт.

4

87267540

ELBOW,45 Degree Elbow, 2" Full Port Flange x 2" Full Port Flange, Poly

1шт.

5

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

1шт.

6

84313733

MOUNTING PLATE

Strainer

1шт.

7

87342763

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

8

87706928

SCREEN,10 SS Mesh Screen

10 Mess, SST

1шт.

9

BN50146

WASHER,3/8", Stainless

2шт.
