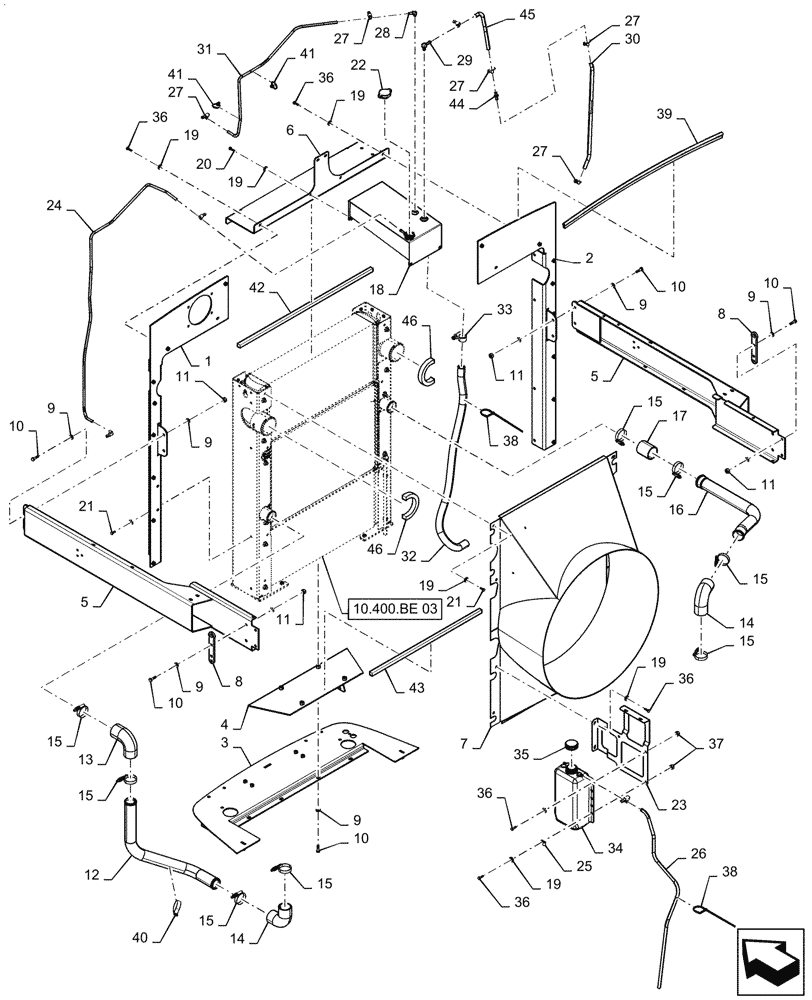

Запчасти Case IH PATRIOT 4440 (10.400.BE[01.1]) - RADIATOR MOUNTING PARTS, ASN YGT044000 (10) - ENGINE

1

48025904

MOUNT

Coolers

1шт.

2

48025887

MOUNT

Coolers

1шт.

3

47939604

SUPPORT

Cooler Mount

1шт.

4

47939621

MOUNT

Coolers

1шт.

5

48007480

MOUNT

Tank Support

2шт.

6

48025875

COVER

Cooling Stack

1шт.

7

47939504

SHROUD

Fan

1шт.

8

47402225

LUG

Lifting

2шт.

9

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

26шт.

10

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

18шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

12

47939508

TUBE

Lower Radiator

1шт.

13

48012961

RADIATOR HOSE

Radiator

1шт.

14

BN324392

RADIATOR HOSE,57.00 mm ID x 110.00 mm, SAE 20R4 Class D1 per SAE J20

Lower

2шт.

15

L115548

CLAMP,57.15mm - 79.38mm

8шт.

16

48067382

TUBE

Upper

1шт.

17

87539189

FLEXIBLE HOSE,62.00 mm ID x 80.00 mm

1шт.

18

47418724

TANK

Dearation

1шт.

19

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

38шт.

20

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

21

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

20шт.

22

A170241

RADIATOR CAP

103 KPA

1шт.

23

48012500

MOUNT

Bottle

1шт.

24

47940176

HOSE

1шт.

25

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

26

84545873

FUEL HOSE

5/16" X 48" Hose

1шт.

27

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

9шт.

28

217-291

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/8" Male NPTF

1шт.

29

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

30

87267875

FUEL HOSE,9.53mm ID x 2076.45mm L, SAE 30R7

24', Bulk Roll

1шт.

31

BN306821

HOSE,0.75" ID, Bulk

5' Roll

1шт.

32

1541952C1

HOSE,25.4mm ID x 7620mm L

25' Bulk Roll

1шт.

33

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

34

87481454

BOTTLE

Recovery, 5 Quart

1шт.

35

86507190

CAP

Coolant Recovery

1шт.

36

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

12шт.

37

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

7шт.

38

BN570007

STRAP

14" Zip-Tie

2шт.

39

48006401

SEALING STRIP

Baffle

1шт.

40

515-23571

CLAMP,2 1/4", Insul, 3/8" Bolt

1шт.

41

87719265

FASTENER

1шт.

42

48006739

FOAM

1шт.

43

48006838

STRIP

1шт.

44

48015694

NIPPLE

1шт.

45

BN313747

FUEL HOSE,0.375" ID x 10.0", SAE 30R6,SAE 30R7

1шт.

46

48017118

FOAM

2шт.
