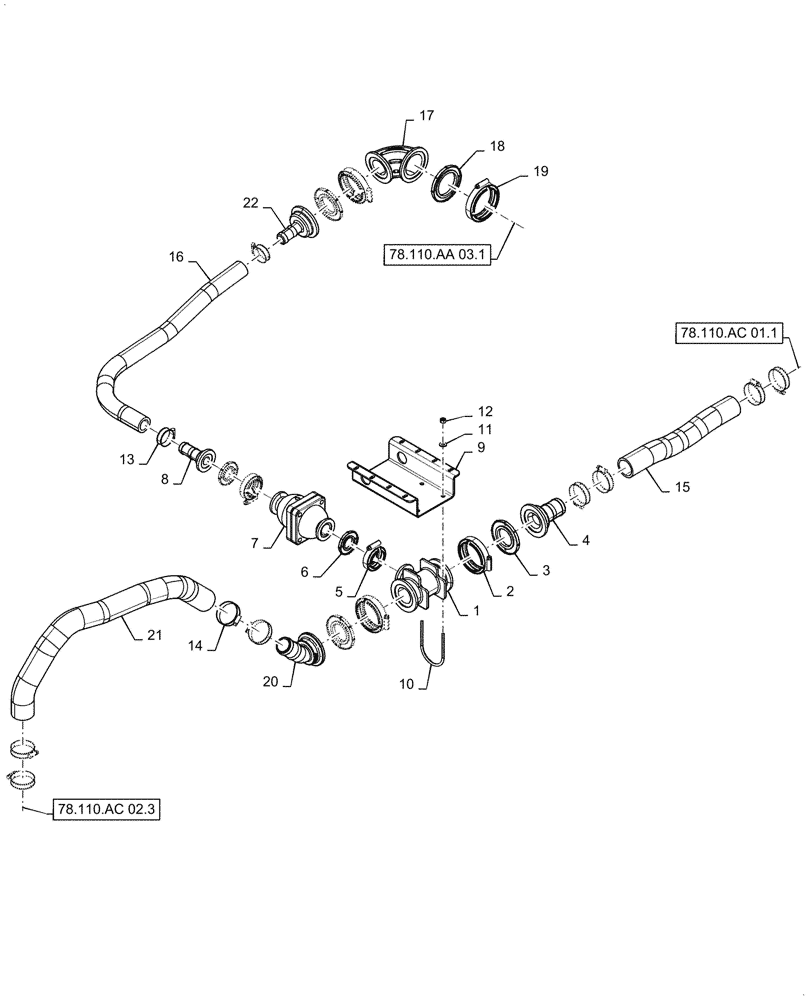

Запчасти Case IH PATRIOT 4440 (78.110.AC[05.1]) - RELIEF VALVE & LINE ASSY, ASN 044000 (78) - SPRAYING

1

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

1шт.

2

BN303199

CLAMP,2" Flange

3шт.

3

47888705

GASKET

2" Flange, EPDM

3шт.

4

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

1шт.

5

BN303203

CLAMP,1" Flange

2шт.

6

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

2шт.

7

87268172

VALVE

Check, 1" MFD, 100 PSI

1шт.

8

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1шт.

9

87265474

MOUNTING PLATE

Pressure Relief Valve

1шт.

10

BN303201

U-BOLT

1/4" x 2.38" x 3.75"

2шт.

11

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

12

87343957

NUT,1/4" - 20

4шт.

13

BN75990

HOSE CLAMP

# 16 SST

2шт.

14

BN310448

HOSE CLAMP

# 28 SST

8шт.

15

87268198

HOSE,1.50" ID x 13.00"

1шт.

16

BN53479

HOSE,1.00" ID BULK

1шт.

17

47888650

FITTING,2" Full Port Flange x 2" Flange Sweep

90°, 2" Flange

1шт.

18

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

1шт.

19

BN313773

CLAMP,2" Full Port

1шт.

20

47690895

FITTING,2" Flange x 1-1/2" 45 Degree Hose Barb Elbow

45°, 2" Flange x 1 1/2" Hose Barb

1шт.

21

BN53621

HOSE,1.50" ID BULK

1шт.

22

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

1шт.
