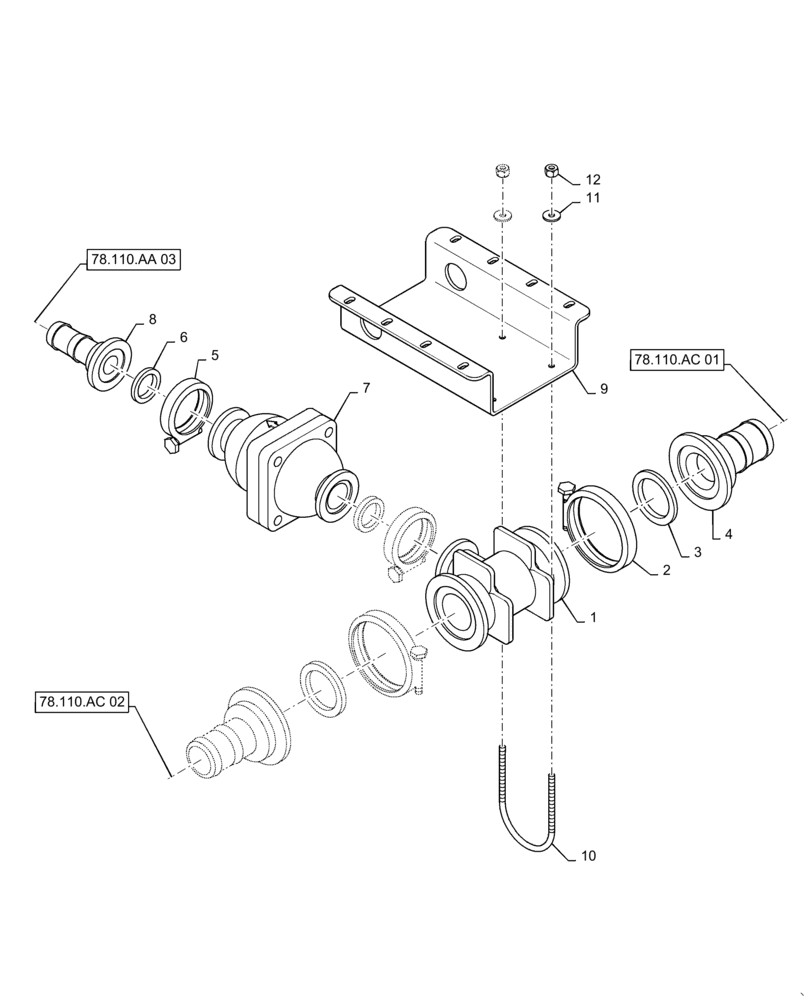

Запчасти Case IH PATRIOT 4440 (78.110.AC[05]) - RELIEF VALVE PLUMBING, BSN 044001 (78) - SPRAYING

1

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2" Flange x 2" Flange x 1" Flange, Poly

1шт.

2

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

3

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

4

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

2" Flange x 1 - 1/2" Hose Barb, Poly

2шт.

5

BN303203

CLAMP,1" Flange

1" Flange

2шт.

6

BN303205

GASKET

1” Flange, EPDM

2шт.

7

87268172

VALVE

Check, 1" MFD, 100 PSI

1шт.

8

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1" Flange x 1" Barb

1шт.

9

87265474

MOUNTING PLATE

Pressure Relief Valve

1шт.

10

BN303201

U-BOLT

1/4" x 2.38" x 3.75"

2шт.

11

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281" x 0.625" x 0.065", HTS, DOR, HDN

4шт.

12

87343957

NUT,1/4" - 20

1/4" - 20, GB, DOR

4шт.
