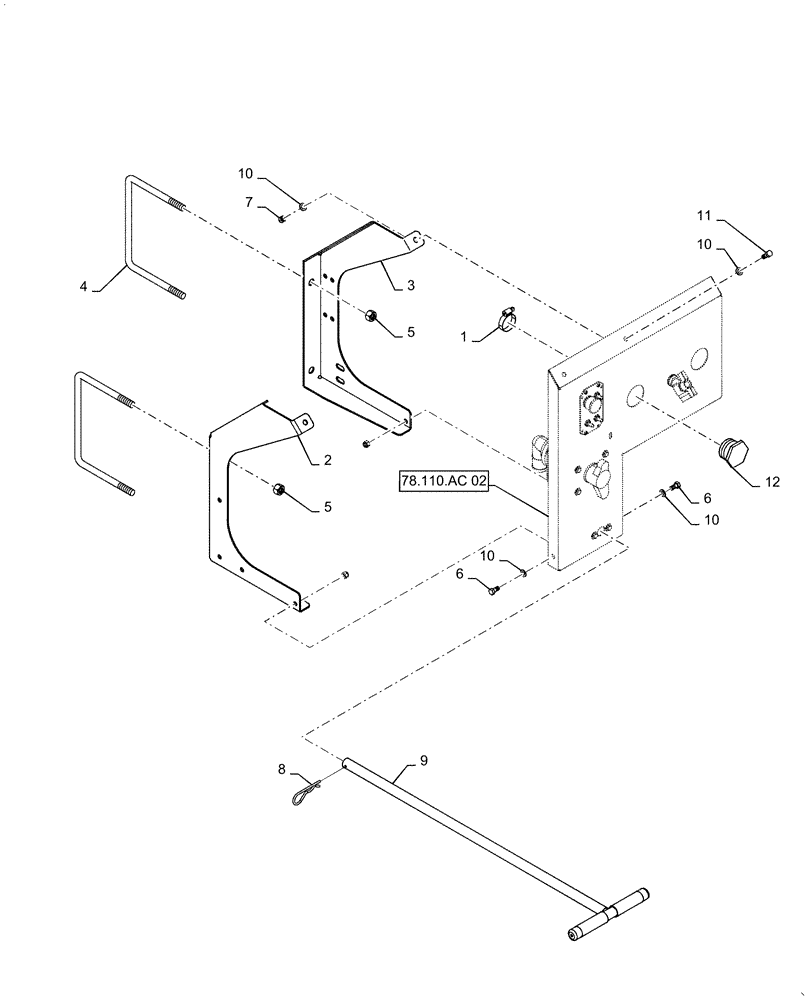

Запчасти Case IH PATRIOT 4440 (78.110.AC[04]) - FILL CONTROL STATION, MOUNTING (78) - SPRAYING

1

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

2

343414A1

MOUNTING PLATE

Operation Station, LH Mount

1шт.

3

343418A1

MOUNTING PLATE

Operation Station, RH Mount

1шт.

4

BN325918

U-BOLT

M16 x 256 ID x 187 IL

2шт.

5

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

4шт.

6

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

7

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

8

BN71007

CLIP,3/16" Hairpin

1шт.

9

87270634

SPACER

Bushing Plastic

1шт.

10

BN50146

WASHER,3/8", Stainless

6шт.

11

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

12

BN73794

PLUG,2" Male NPT, Poly

1шт.
