(78.110.AC[03]) - PRESSURE FILL PLUMBING MOUNTING, PRODUCT AND RINSE

Запчасти Case IH PATRIOT 4440 (78.110.AC[03]) - PRESSURE FILL PLUMBING MOUNTING, PRODUCT AND RINSE (78) - SPRAYING

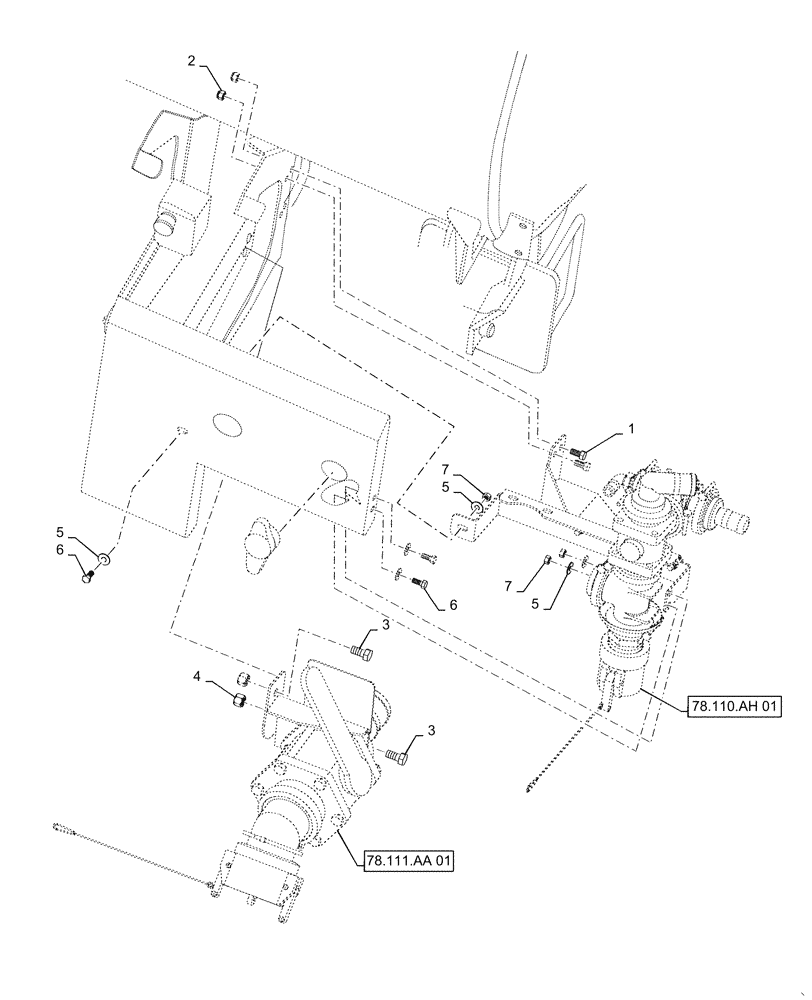

Схема запчастей Case IH PATRIOT 4440 - (78.110.AC[03]) - PRESSURE FILL PLUMBING MOUNTING, PRODUCT AND RINSE (78) - SPRAYING
5
6
78.110.ah 01
3
4
78.111.aa 01
2
6
5
5
7
1
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

2

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

3

BN50691

BOLT,Hex, 1/2" - 13 x 1", SST

1/2" - 13 x 1, Stainless Steel

2шт.

4

BN320390

NUT

1/2" - 13, TL, G5

2шт.

5

BN50142

WASHER,5/16", Stainless Steel

6шт.

6

BN50476

BOLT,5/16"-18 x 0.75", Stainless

3шт.

7

BN55361

NUT,5/16"-18, Nylon, Stainless

3шт.
