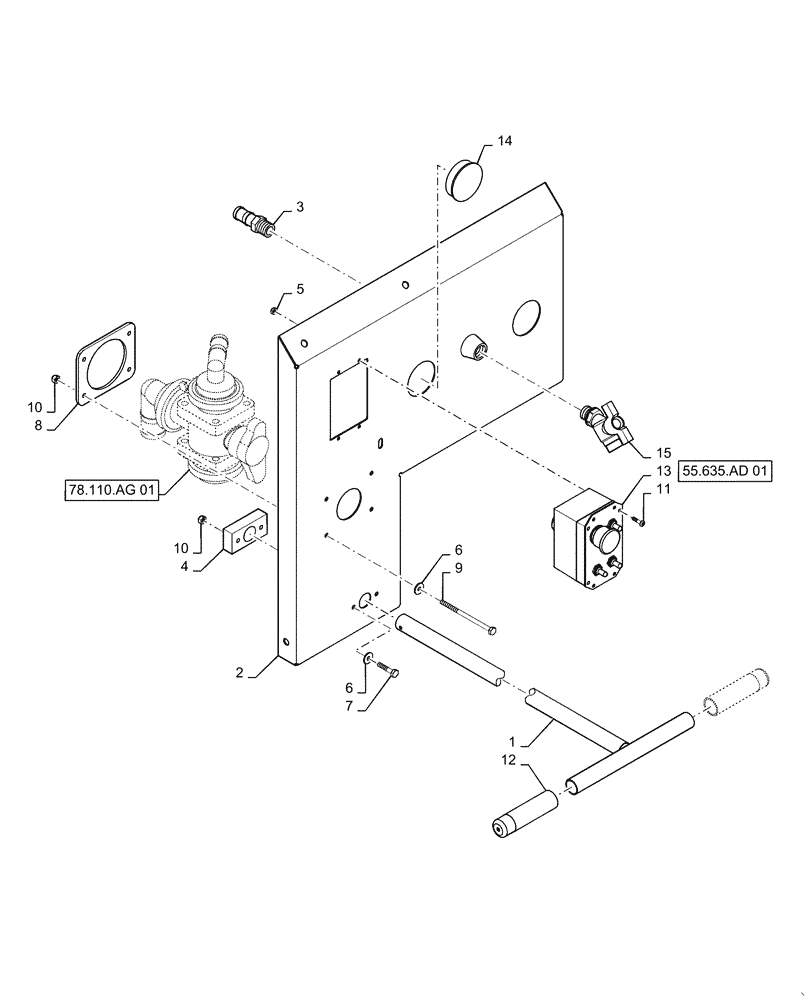

Запчасти Case IH PATRIOT 4440 (78.110.AC[02]) - FILL STATION (78) - SPRAYING

1

343411A1

HANDLE

3" Manifold, Product Tank Fill Control

1шт.

2

344398A1

MOUNTING PLATE

Operation Station

1шт.

3

BN322536

ADAPTER,1/2" Male NPT x 3/4" Hose Barb, Poly

1/2" MPT x 3/4" Hose Barb, Poly

1шт.

4

BN323177

BUSHING

Valve Handle Extension

1шт.

5

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

6

BN50138

WASHER,1/4", SS

6шт.

7

BN50688

BOLT,Hex, 1/4" - 20 x 1-1/4", SST

1/4" - 20 x 1 - 1/4", Stainless Steel

2шт.

8

BN323367

PLATE

Chemical Inductor And Rinse Valve Holder

1шт.

9

BN311764

BOLT,Hex, 1/4" - 20 x 4-1/4", SST

1/4" - 20 x 4 - 1/4", Stainless Steel

4шт.

10

BN55359

LOCK NUT,1/4"-20, SS

6шт.

11

BN311631

BOLT,#10 - 24 x 3/4", SST

10 - 24 x .75", BSH, Stainless Steel

4шт.

12

BN323880

GRIP

Handle, 1" ID, Vinyl

2шт.

13

87266536

CONTROL UNIT

Remote Station Reload Center

1шт.

See Fig 55.635.AD 01 For Service Parts

1шт.

14

BN2397660

PLUG

Dash 2" #2403

1шт.

15

BN53817

DRAIN VALVE

Ball, 1/2" NPT x Garden Hose Thread, Blue Handle

1шт.
