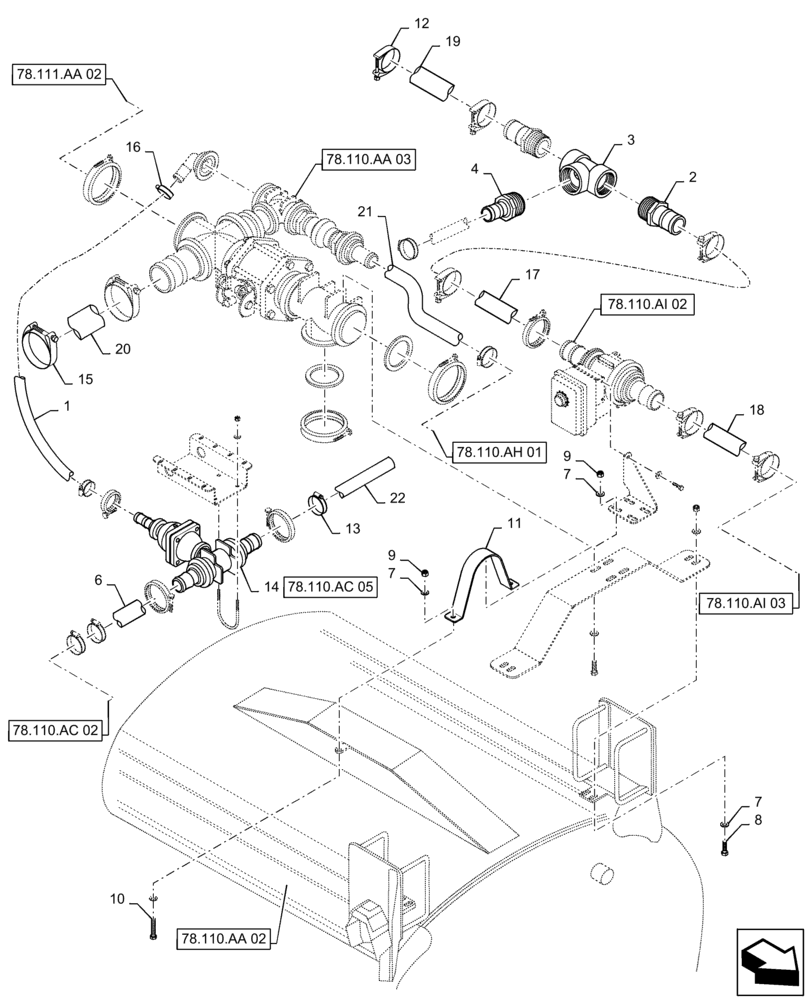

Запчасти Case IH PATRIOT 4440 (78.110.AC[01]) - MAIN PLUMBING, UNDER PRODUCT TANK, BSN YGT042519 (78) - SPRAYING

1

BN66859

HOSE

1" EPDM x 23"

1шт.

2

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

3

BN73779

TEE,2" Poly Tee

2" Poly Pipe

1шт.

4

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" NPT x 1.5" Hose Barb

1шт.

6

87268199

HOSE,1.50" ID x 33.00"

Suction, Runs To Chemical Inductor/Rinse Valve

1шт.

7

BN50146

WASHER,3/8", Stainless

12шт.

8

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

9

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

10

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

2шт.

11

BN323887

STRAP

3" Tee Under Sump

1шт.

12

BN2403358

CLAMP,50.8mm - 63.5mm

T - Bolt Band

6шт.

13

BN310448

HOSE CLAMP

#28, SST

6шт.

14

87268197

VALVE PRESSURE RELIE

Plumbing, PSI

1шт.

See 78.110.AC 05

1шт.

15

BN2403395

CLAMP

T - Bolt Band 3.56"

2шт.

16

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

17

86986356

HOSE,2.00" ID x 18.00"

1шт.

18

BN53755

HOSE

1.5" x 21" Suction, Runs From Sparge Valve Group To Sprage Plumbing

1шт.

19

BN324204

HOSE,12.00"

EPDM, Poly, Runs To Product Pump

1шт.

20

86986355

HOSE,3.00" ID x 23.00"

Product Fill Hose

1шт.

21

BN324533

HOSE,1.50" ID x 60.00"

Suction, Runs From Product Sump Plumbing To Rinse Fill Plumbing

1шт.

22

87268198

HOSE,1.50" ID x 13.00"

Suction

1шт.
