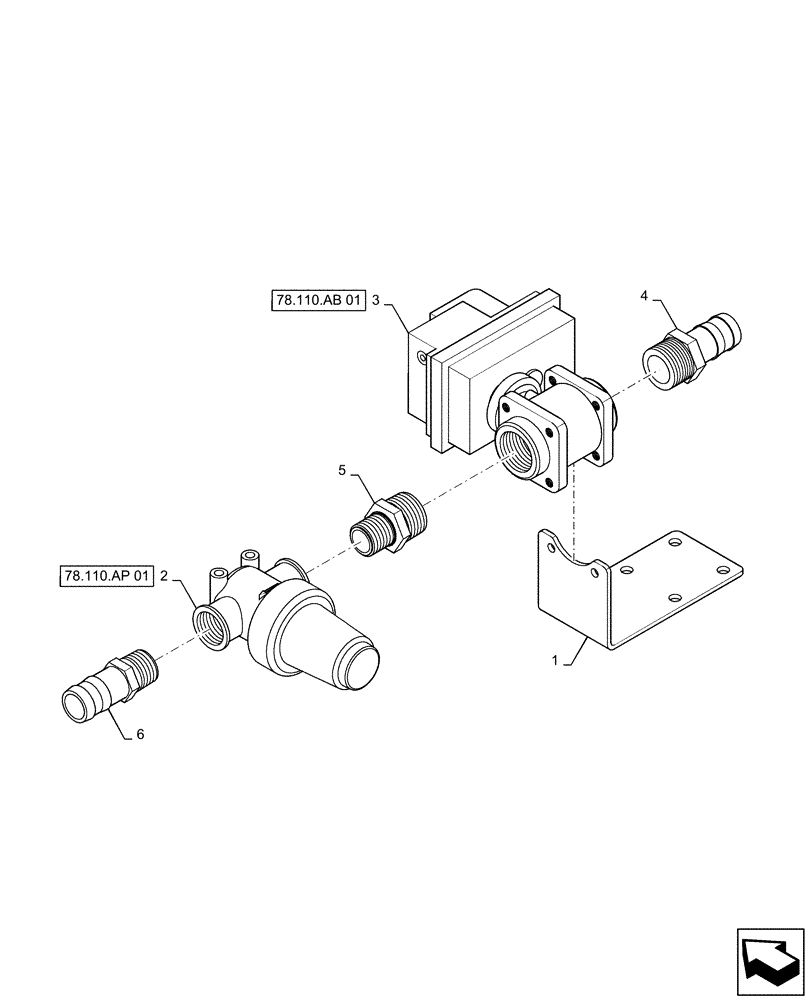

Запчасти Case IH PATRIOT 4440 (78.110.AB[08]) - 90, 5 AND 6 SECTION, SINGLE BOOM VALVE, SINGLE STRAINER, RH, BSN YGT044001 (78) - SPRAYING

1

BN319996

BRACKET

NPT Ball Valve

1шт.

2

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

1шт.

See Fig 78.110.AP 01 For Service Parts

1шт.

3

87268179

VALVE

1.25" Ball, Electric, Boom Shut Off Valve

1шт.

See Fig 78.110.AB 01 For Service Parts

1шт.

4

BN73660

PIPE FITTING,1-1/4" NPT Male x 1-1/4" Barbed

1 - 1/4" NPT x 1 - 1/4" Hose Barb

1шт.

5

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1 - 1/4" NPT x 1" NPT

1шт.

6

BN321509

FITTING

1" NPT x 1 - 1/4" Hose Barb

1шт.
