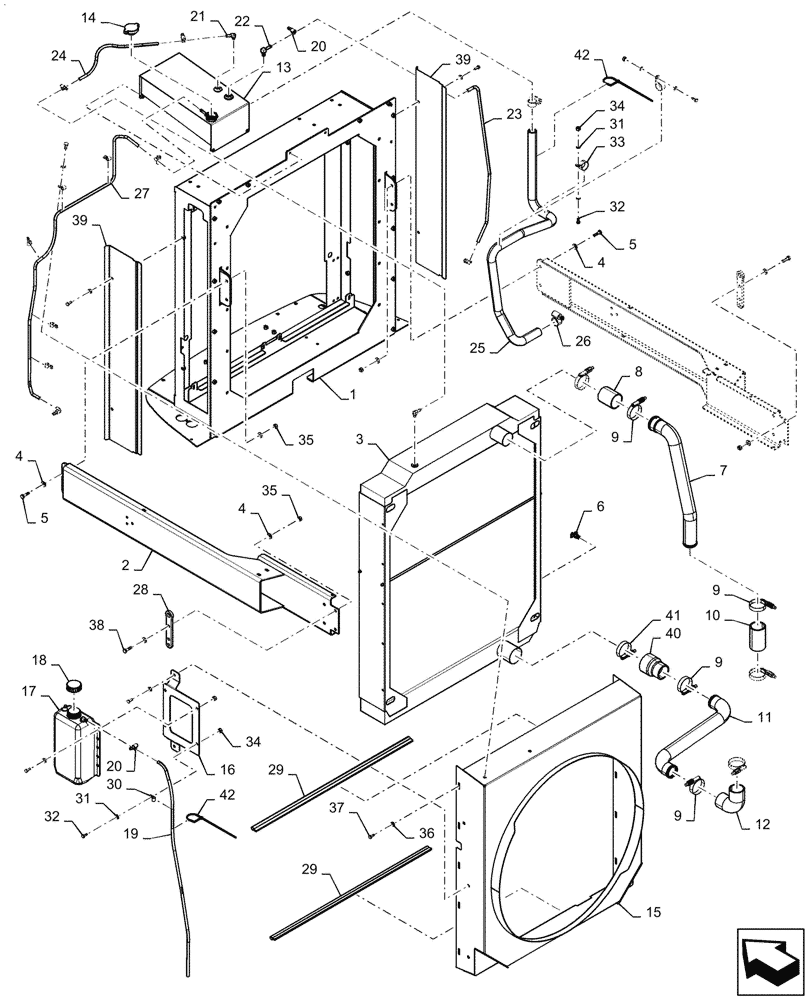

Запчасти Case IH PATRIOT 4440 (10.400.BE[01]) - RADIATOR, ASSY, BSN YGT044001 (10) - ENGINE

1

47669680

MOUNT

Cooler

1шт.

2

47669682

SUPPORT

Tank Rail

2шт.

3

87266225

RADIATOR

6.5 FPI

1шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

30шт.

5

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

DOR

10шт.

6

217-92

COCK

Drain

1шт.

7

84281939

TUBE

Upper Radiator

1шт.

8

87539189

FLEXIBLE HOSE,62.00 mm ID x 80.00 mm

Cooler

1шт.

9

L115548

CLAMP,57.15mm - 79.38mm

7шт.

10

BN324394

RADIATOR HOSE,57.00 mm ID x 110.00 mm, SAE J20, SAE 20R4

Straight Coupling

1шт.

11

84281938

TUBE

Lower Radiator

1шт.

12

BN324392

RADIATOR HOSE,57.00 mm ID x 110.00 mm, SAE 20R4 Class D1 per SAE J20

Lower

1шт.

13

47418724

TANK

Dearation

1шт.

14

A170241

RADIATOR CAP

103 KPA

1шт.

15

47418171

SHROUD

Fan

1шт.

16

47418282

MOUNTING PLATE

Coolant Bottle

1шт.

17

87481454

BOTTLE

Recovery, 5 Quart

1шт.

18

86507190

CAP

Coolant Recovery

1шт.

19

84545873

FUEL HOSE

5/16" X 48" Hose

1шт.

20

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

21

217-291

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/8" Male NPTF

2шт.

22

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

23

84514630

HOSE

Engine To Dearation

1шт.

24

BN314262

HOSE,0.31" ID x 36.00"

Dearation To Radiator

1шт.

25

84286174

HOSE

Dearation To Engine

1шт.

26

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

27

87270503

HOSE,7.87mm ID x 1828.8mm L

Dearation To CRB

1шт.

28

47402225

LUG

Lifting

2шт.

29

84283473

SEAL

Baffle

2шт.

30

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

31

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

19шт.

32

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

17шт.

33

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

34

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

35

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

36

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

10шт.

37

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

10шт.

38

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

8шт.

39

47431694

COVER ASSY

Cooler

2шт.

40

84325964

RADIATOR HOSE

Lower

1шт.

41

L115549

CLAMP,69.85mm - 92.08mm

Hose

1шт.

42

BN570007

STRAP

14" Zip-Tie

2шт.
