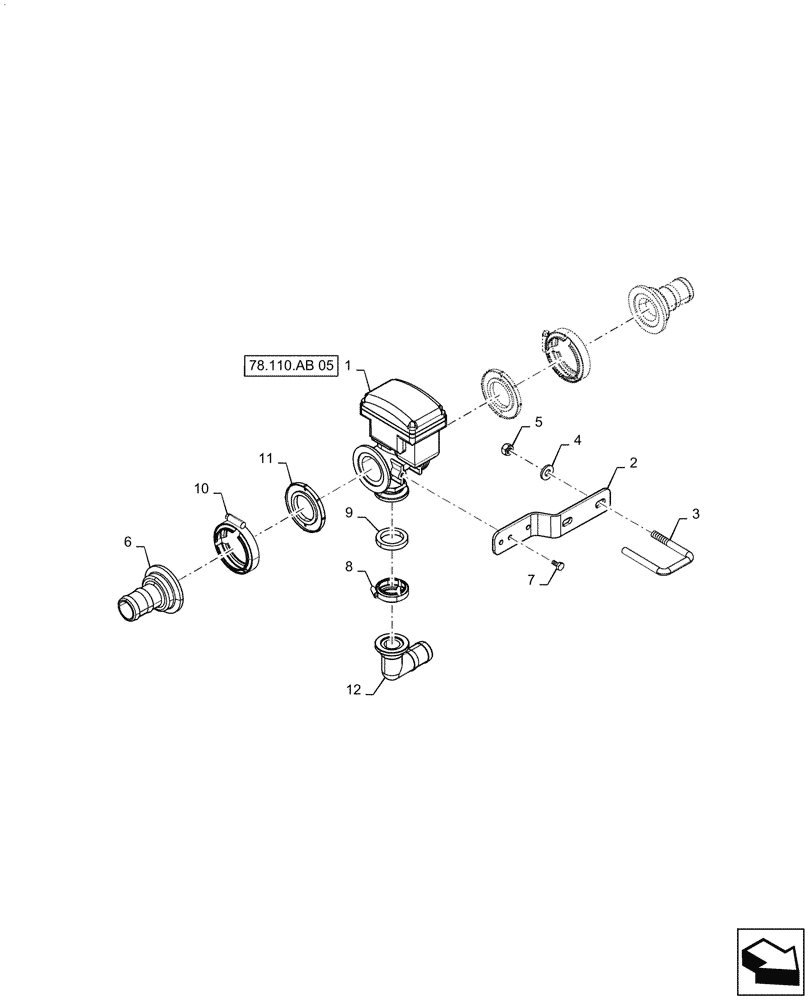

Запчасти Case IH PATRIOT 4440 (78.110.AB[07.1]) - BOOM SHUT-OFF VALVE, 5 AND 6 SEC 90 / 100, INNER, ASN YGT042518 (78) - SPRAYING

1

87632830

SHUT-OFF VALVE

2" Flange

1шт.

2

47945077

MOUNT

Inner

1шт.

3

47650282

U-BOLT

M10

1шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

6

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

1шт.

7

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

8

BN303203

CLAMP,1" Flange

1шт.

9

BN303205

GASKET

1" Flange

1шт.

10

BN303199

CLAMP,2" Flange

2шт.

11

BN303204

GASKET,1-1/2" EPDM Gasket

2шт.

12

87575511

FITTING,1" Flange x 1-1/4" 90 Degree Hose Barb Elbow

1шт.
