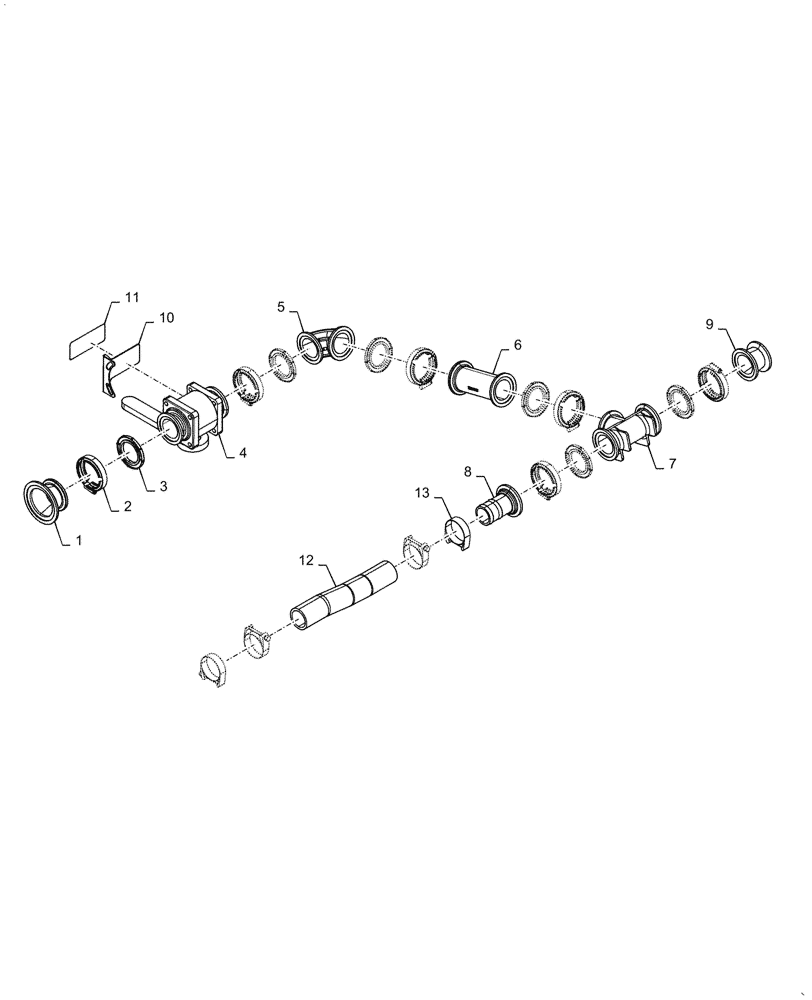

Запчасти Case IH PATRIOT 4440 (78.110.AA[12]) - SUCTION QUICK FILL (78) - SPRAYING

1

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

1шт.

2

BN313773

CLAMP,2" Full Port

6шт.

3

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

6шт.

4

BN324057

VALVE,2" Full Port Flange x 2" Full Port Flange

1шт.

5

47767922

FITTING,2" Full Port Flange x Flange Sweep

1шт.

6

47777617

COUPLING,2" x 2" Full Port Flange x 6"

2" Straight Flange

1шт.

7

BN322550

TEE,2" Full Port Flange x 2" Full Port Flange x 2" Full Port Flange

1шт.

8

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

1шт.

9

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

1шт.

10

47527172

MOUNT

Suction Fill

1шт.

11

47827909

DECAL

Suction Fill

1шт.

12

87266610

HOSE

2" x 10" EPDM

1шт.

13

BN2403358

CLAMP,50.8mm - 63.5mm

4шт.
