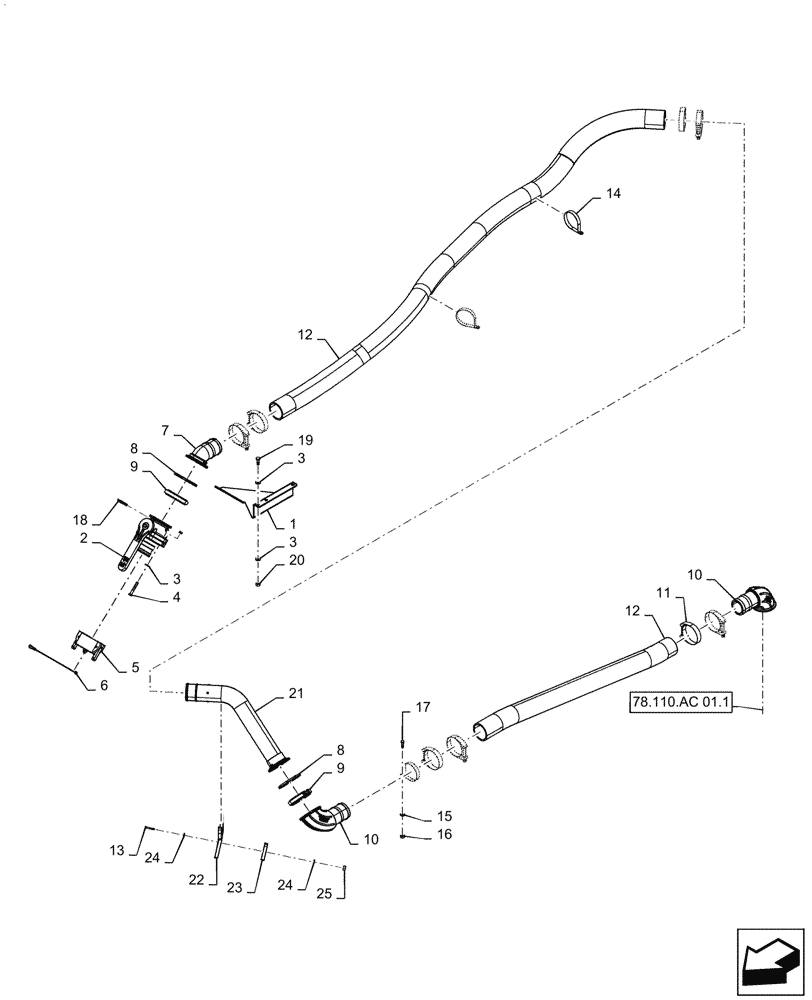

Запчасти Case IH PATRIOT 4440 (78.110.AA[10]) - FRONT FILL PLUMBING, 3", ASN YGT042518 (78) - SPRAYING

1

47593300

MOUNT

FRONT FILL 3"

1шт.

2

47421018

VALVE,3" Flange x 3" Male Adapter

Stubby, 3.0 FLB 3.0 CAMM, PP

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

5шт.

4

BN50948

BOLT,Hex, 3/8" - 16 x 2 1/2", Stainless

3шт.

5

BN2393384

CAP

3.0 CAM, PP

1шт.

6

416624A1

ROPE

Nylon Basket Lock Pin

1шт.

7

84283082

FITTING,3" Flange x 3" 45 Degree Hose Barb Elbow

45, 3.0 FLB 3.0 HB, PP

1шт.

8

47888707

GASKET,81mm ID x 113mm OD x 6mm Thk

2шт.

9

BN321074

CLAMP,101.6mm

3.0 FLB

2шт.

10

47839175

FITTING

90, 3.0 FLB 3.0 HB, PP

1шт.

11

BN2403395

CLAMP

T Bolt, 1 - 1/2", EPDM

8шт.

12

BN326025

HOSE,3.00" ID BULK

1шт.

13

86980364

BOLT,Hex, M6 - 1 x 40mm, Cl 8.8, DOR

1шт.

14

87021162

CLAMP,88.9mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

15

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

16

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

17

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

18

306132C1

CABLE TIE,14.5" L

1шт.

19

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

20

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

21

48003384

TUBE

Front Fill

1шт.

22

48003377

MOUNT

Tube, Y

1шт.

23

48003378

MOUNT

Tube, Backer Plate

1шт.

24

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

25

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

1шт.
