(78.110.AA[09]) - FRONT FILL PLUMBING, 3", BSN YGT042519

Запчасти Case IH PATRIOT 4440 (78.110.AA[09]) - FRONT FILL PLUMBING, 3", BSN YGT042519 (78) - SPRAYING

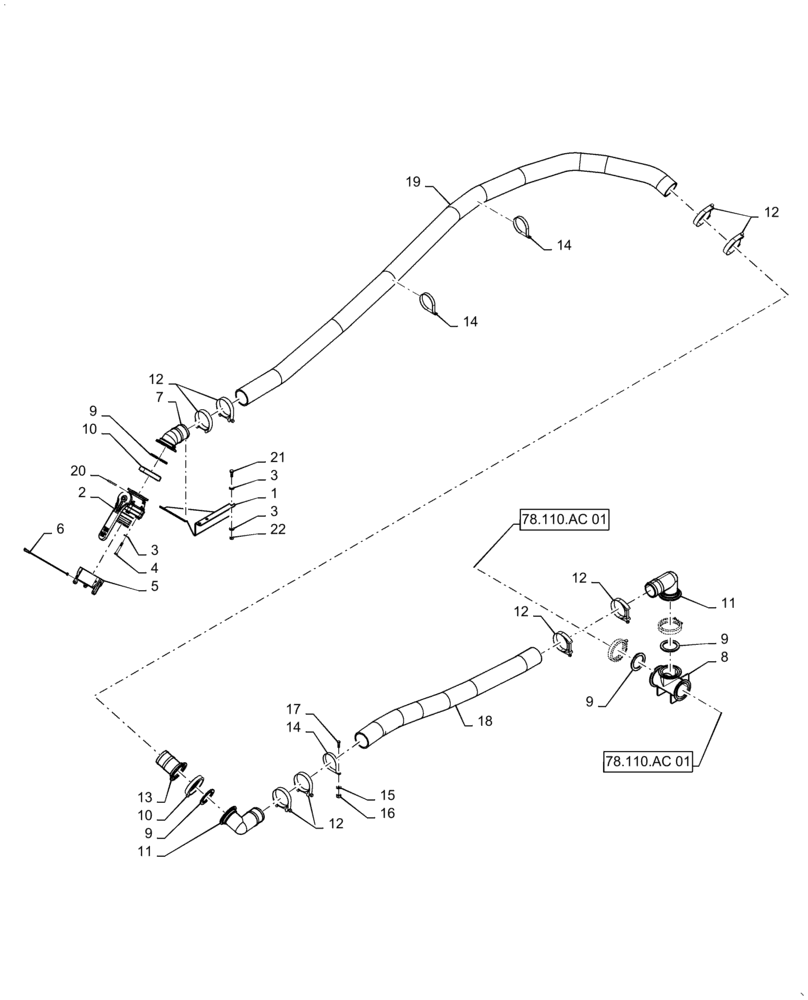

Схема запчастей Case IH PATRIOT 4440 - (78.110.AA[09]) - FRONT FILL PLUMBING, 3", BSN YGT042519 (78) - SPRAYING
4
14
78.110.ac 01
9
18
3
17
13
14
21
9
8
15
7
78.110.ac 01
5
19
3
12
10
12
1
6
3
11
12
16
12
10
20
2
22
14
9
9
11
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47593300

MOUNT

FRONT FILL 3"

1шт.

2

47421018

VALVE,3" Flange x 3" Male Adapter

Stubby, 3.0 FLB 3.0 CAMM, PP

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

7шт.

4

BN50948

BOLT,Hex, 3/8" - 16 x 2 1/2", Stainless

3шт.

5

BN2393384

CAP

3.0 CAM, PP

1шт.

6

416624A1

ROPE

Nylon Basket Lock Pin

1шт.

7

84283082

FITTING,3" Flange x 3" 45 Degree Hose Barb Elbow

45, 3.0 FLB 3.0 HB, PP

1шт.

8

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

Manifold, 3"

1шт.

9

BN321073

GASKET,3" Flange, EPDM

3.0 FLB, EPDM

4шт.

10

BN321074

CLAMP,101.6mm

3.0 FLB

4шт.

11

BN321082

FITTING,3" Flange x 3" 90 Degree Hose Barb Elbow

90, 3.0 FLB 3.0 HB, PP

2шт.

12

BN2403395

CLAMP

T Bolt, 1 - 1/2", EPDM

8шт.

13

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

STR, 3.0 FLB 30. HB, PP

1шт.

14

87021162

CLAMP,88.9mm, Coat, 8.7mm Bolt Hole, P Type

Closed, 88.9MM Insul 5/16 Bolt

3шт.

15

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

16

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

17

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

18

47393250

HOSE

Suction 3" EPDM

1шт.

19

47438766

HOSE

Suction 3" EPDM

1шт.

20

306132C1

CABLE TIE,14.5" L

1шт.

21

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

22

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.
