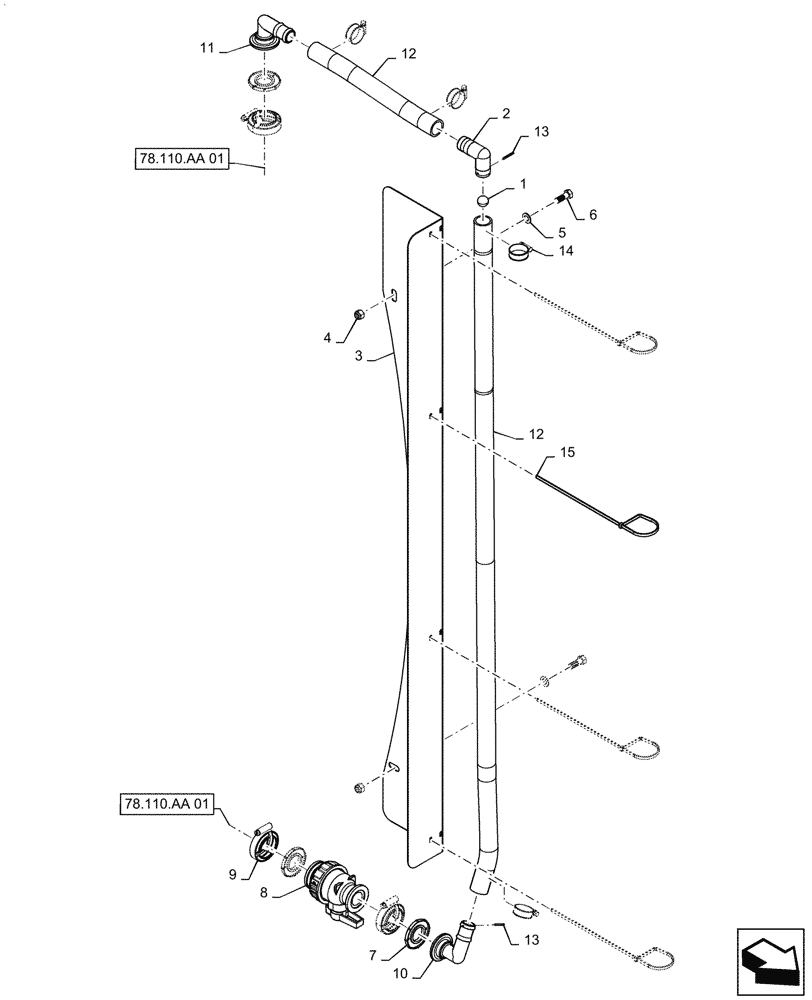

Запчасти Case IH PATRIOT 4440 (78.110.AA[07.1]) - PRODUCT TANK SIGHT GAUGE ASN YGT042518 (78) - SPRAYING

1

BN326104

BALL

3/4" Poly, Floating Level

1шт.

2

342685A1

END FITTING

Hose Barb, 1", 90°, Incl 13

1шт.

3

87267525

PLATE

Sight Gauge

1шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

5

BN50146

WASHER,3/8", Stainless

2шт.

6

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

7

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

3шт.

8

47909417

VALVE,1" Manifold Full Port Union Valve

1" Flange

1шт.

9

BN303203

CLAMP,1" Flange

3шт.

10

47903250

FITTING

1" Flange x 1" Hose Barb Incl 13

1шт.

11

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

1шт.

12

BN54256

HOSE

1.0" ID x 1/8", Wall, Clear, Vinyl, Bulk, 5' Roll

1шт.

13

BN326105

ROLL PIN

3/32" x 1", SST

1шт.

14

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

15

BN570007

STRAP

14" Zip Tie

4шт.
