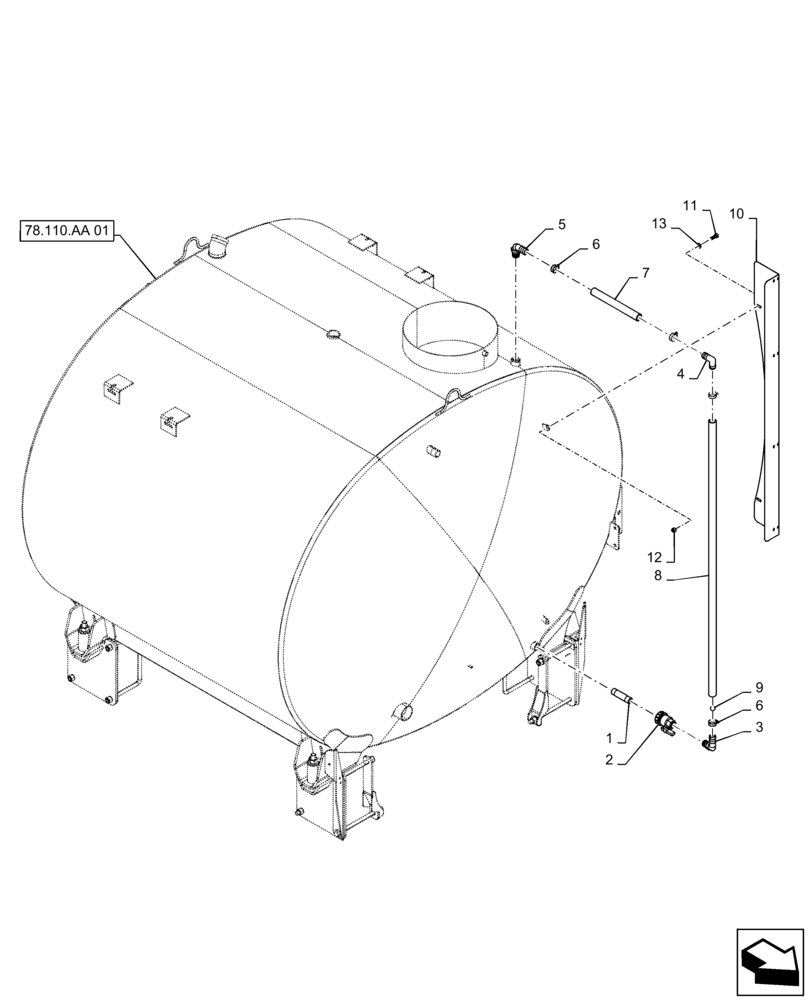

Запчасти Case IH PATRIOT 4440 (78.110.AA[07]) - PRODUCT TANK SIGHT GAUGE, BSN YGT042519 (78) - SPRAYING

1

BN73576

NIPPLE

3/4" x 4", Poly

1шт.

2

BN324588

VALVE

Ball, 3/4", SU Poly

1шт.

3

BN326113

FITTING

Barb Assembly, Hose With Pin

1шт.

4

342685A1

END FITTING

Hose Barb, 1", 90 Degree Elbow With Pin

1шт.

5

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

6

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

7

BN54256

HOSE

1.0" ID x 1/8", Wall, Clear, Vinyl, Cut To Length Of 12"

1шт.

8

342673A1

HOSE

1" ID x 55", Clear Vinyl

1шт.

9

BN326104

BALL

3/4" Poly, Floating Level

1шт.

10

87267525

PLATE

Sight Gauge

1шт.

11

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

12

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

13

BN50146

WASHER,3/8", Stainless

2шт.
