(78.110.AA[06]) - PRODUCT TANK CONTROL VALVE, 3" BALL VALVE

Запчасти Case IH PATRIOT 4440 (78.110.AA[06]) - PRODUCT TANK CONTROL VALVE, 3" BALL VALVE (78) - SPRAYING

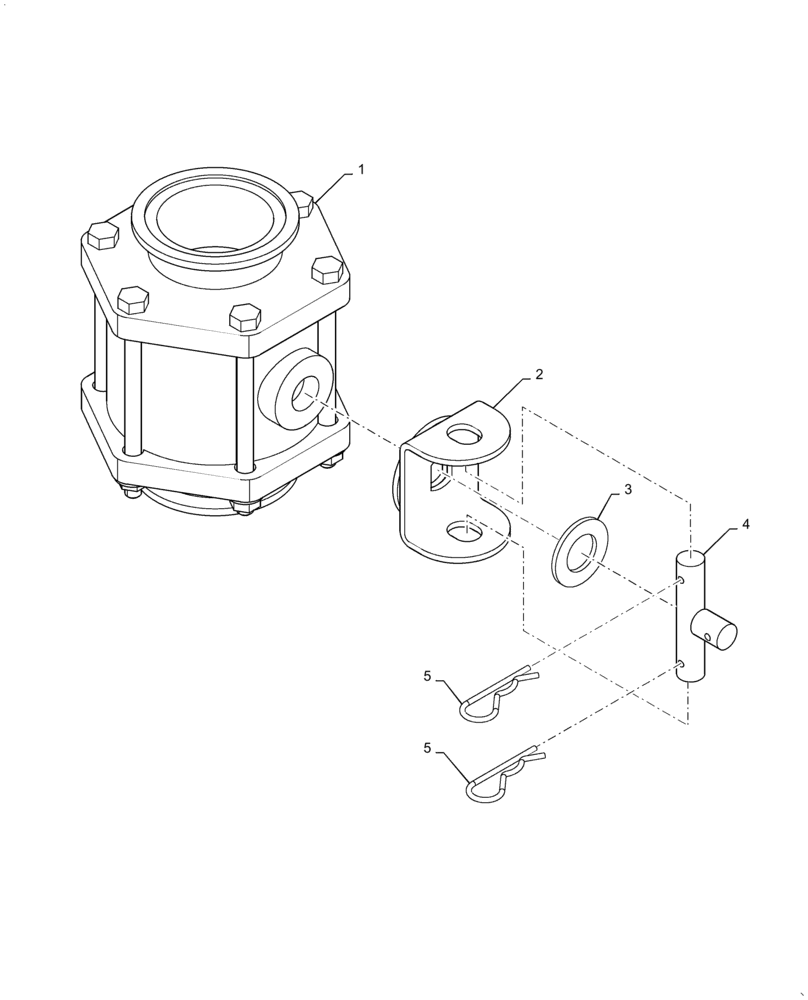

Схема запчастей Case IH PATRIOT 4440 - (78.110.AA[06]) - PRODUCT TANK CONTROL VALVE, 3" BALL VALVE (78) - SPRAYING
5
5
1
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN321070

VALVE,3" Flange

Ball, 3" Flange

1шт.

2

BN323899

PLATE

Valve Rotation

1шт.

3

BN323898

WASHER

28mm ID x 50mm OD

1шт.

4

BN323341

PIN

Valve Handle

1шт.

5

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

2шт.

Выбрано товаров: 5
