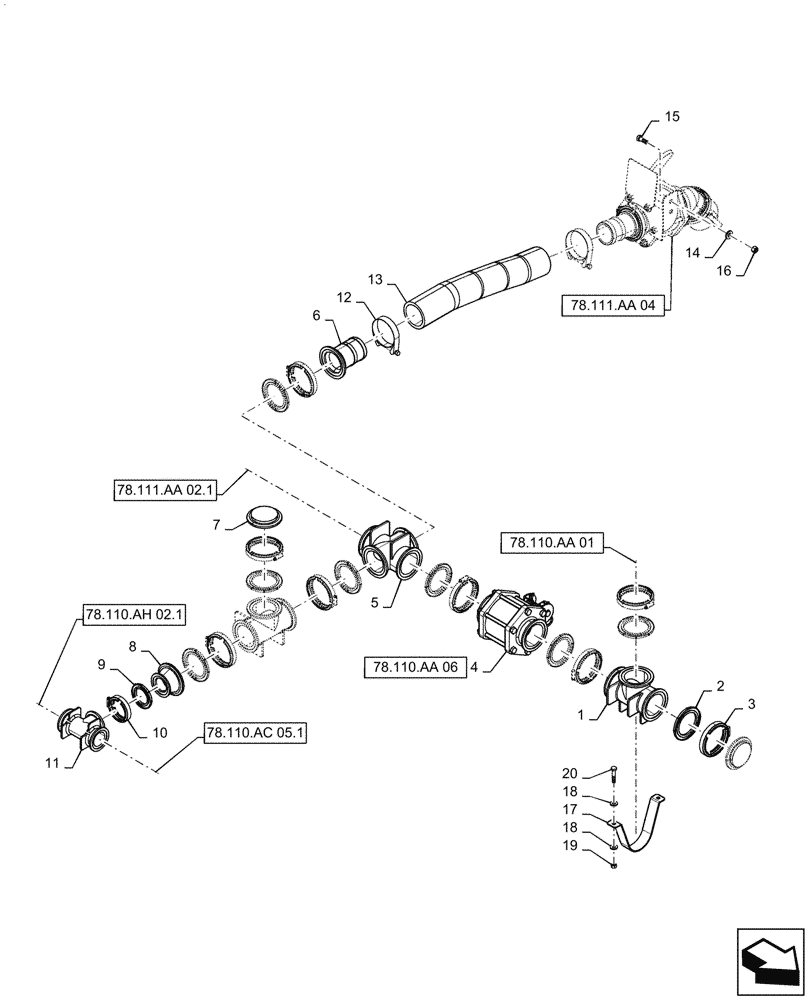

Запчасти Case IH PATRIOT 4440 (78.110.AA[03.1]) - PRODUCT TANK SUMP PLUMBING ASN YGT042518 (78) - SPRAYING

1

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

1шт.

2

47888707

GASKET,81mm ID x 113mm OD x 6mm Thk

8шт.

3

BN321074

CLAMP,101.6mm

3" Flange

8шт.

4

BN322929

VALVE

3" Manifold Ball, Product Tank Control

1шт.

See 78.110.AA 06

1шт.

5

BN321076

CROSS,3" Flange x 3" Flange x 3" Flange x 3" Flange, Poly

1шт.

6

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

1шт.

7

BN321079

PLUG,3" Flange

2шт.

8

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

1шт.

9

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

1шт.

10

BN313773

CLAMP,2" Full Port

1шт.

11

BN322550

TEE,2" Full Port Flange x 2" Full Port Flange x 2" Full Port Flange

1шт.

12

BN2403395

CLAMP

T Bolt

2шт.

13

86986355

HOSE,3.00" ID x 23.00"

1шт.

14

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

15

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

16

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

17

BN323887

STRAP

3"

1шт.

18

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

19

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

20

86980405

BOLT,Hex, M10 - 1.5 x 50mm, Cl 8.8, DOR

2шт.
