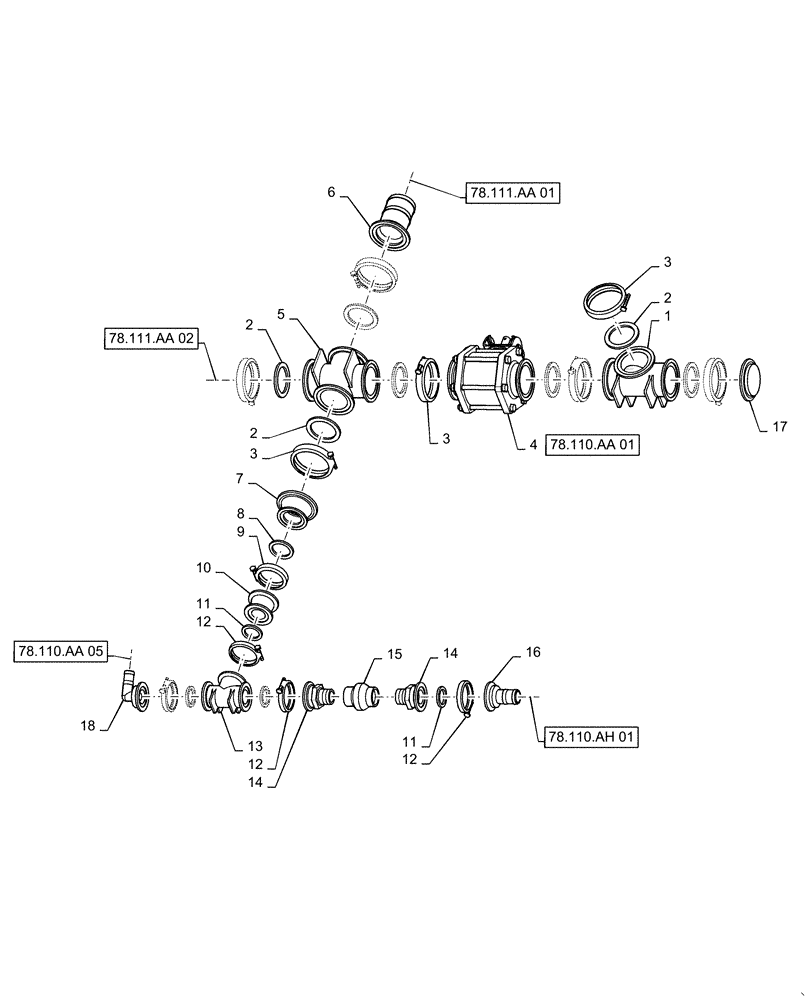

Запчасти Case IH PATRIOT 4440 (78.110.AA[03]) - PRODUCT TANK SUMP PLUMBING, BSN YGT042519 (78) - SPRAYING

1

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

Manifold, 3"

1шт.

2

BN321073

GASKET,3" Flange, EPDM

3" Flange, EPDM

7шт.

3

BN321074

CLAMP,101.6mm

3" Flange

7шт.

4

BN322929

VALVE

3" Manifold Ball, Product Tank Control

1шт.

See 78.110.AA 01

1шт.

5

BN321076

CROSS,3" Flange x 3" Flange x 3" Flange x 3" Flange, Poly

Manifold, 3"

1шт.

6

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3" Flange x 3" Hose Barb, Poly

1шт.

7

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" Full Port Flange, Poly

1шт.

8

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

1шт.

9

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

10

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

2" Full Port Flange x 2" Flange

1шт.

11

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

4шт.

12

BN303199

CLAMP,2" Flange

2" Standard Flange

4шт.

13

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

2" Flange, Poly

1шт.

14

BN306902

FITTING,2" Flange x 1-1/4" Male NPT, Poly

Straight 2" Flange x 1.25 Male

2шт.

15

BN24567

CHECK VALVE

1 - 1/4" NPT

1шт.

16

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

2" Flange x 1 - 1/2" Hose Barb, Poly

1шт.

17

BN321079

PLUG,3" Flange

Manifold, 3"

1шт.

18

BN322003

FITTING,2" Flange x 1" 90 Degree Hose Barb Elbow

2" Flange x 1" Hose Barb

1шт.
