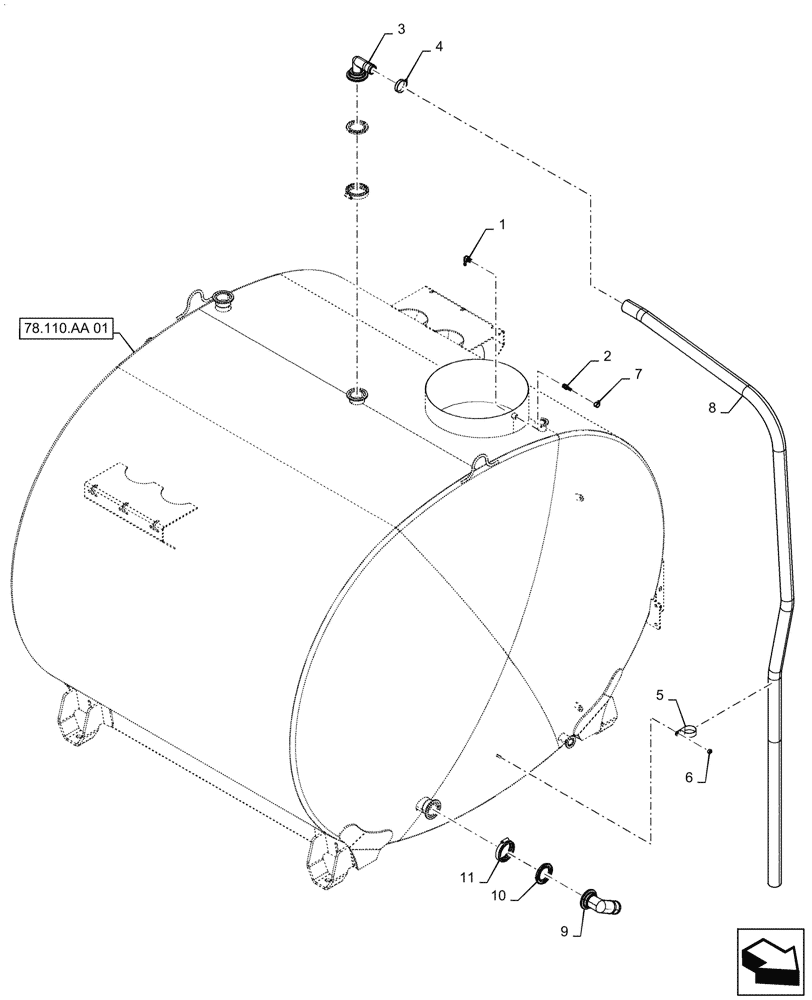

Запчасти Case IH PATRIOT 4440 (78.110.AA[02.1]) - PRODUCT TANK, FRONT PLUMBING, ASN YGT042518 (78) - SPRAYING

1

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1шт.

2

BN53433

FITTING

1/4" NPT x 1/4" Hose Barb, Stainless Steel

1шт.

3

BN322505

FITTING,M220 FP Flanged Hosebarb

90°, 2" Flange x 1 1/2" Hose Barb

1шт.

4

BN310448

HOSE CLAMP

#28, Stainless Steel

1шт.

5

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

6

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

7

BN310450

HOSE CLAMP

1шт.

8

87268177

HOSE,38.10 mm ID x 120 mm

Kaniflex, Product Tank Breather/Overflow

1шт.

9

BN324065

FITTING,2" Full Port Flange x 2" 90 Degree Hose Barb Elbow

2" Flange x 2" Hose Barb

1шт.

10

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2шт.

11

BN313773

CLAMP,2" Full Port

2шт.
