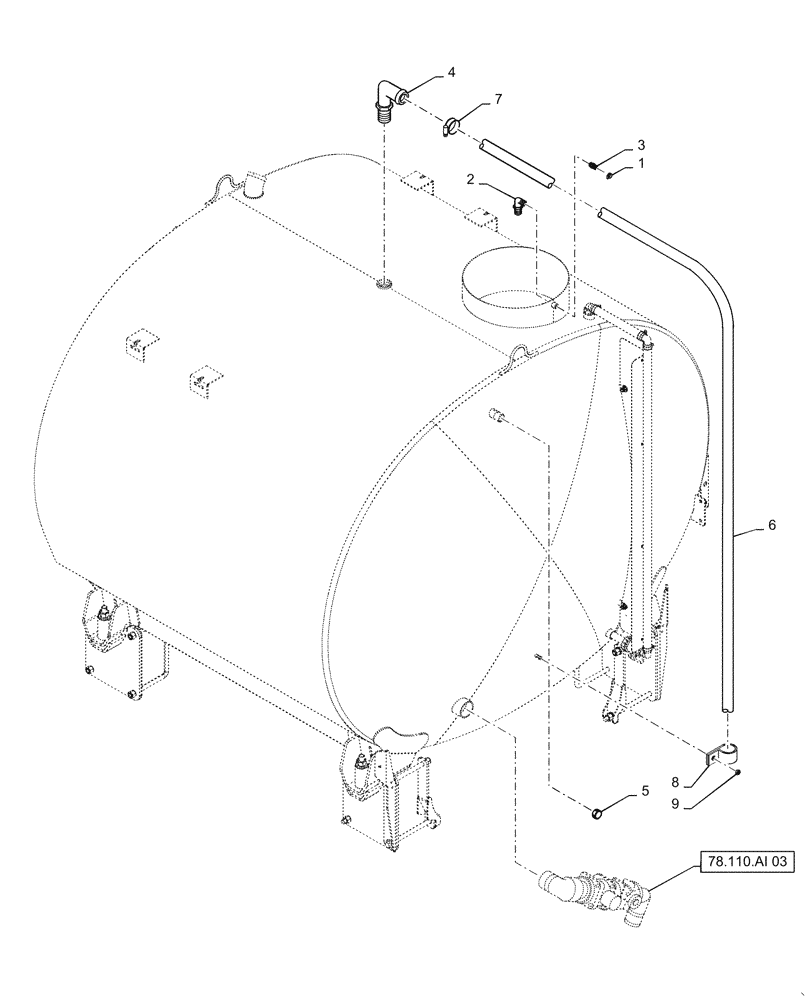

Запчасти Case IH PATRIOT 4440 (78.110.AA[02]) - PRODUCT TANK, FRONT PLUMBING, BSN YGT042519 (78) - SPRAYING

1

87485000

CLAMP,0.25" - 0.62"

#4, Stainless Steel

1шт.

2

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" NPT x 1/4" Hose Barb, Poly

1шт.

3

BN53433

FITTING

1/4" NPT x 1/4" Hose Barb, Stainless Steel

1шт.

4

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1 - 1/2" NPT x 1 - 1/2" Hose Barb, Poly

1шт.

5

BN73606

CAP

1" NPT, Poly Pipe

1шт.

6

87268177

HOSE,38.10 mm ID x 120 mm

Kaniflex, Product Tank Breather/Overflow

1шт.

7

BN310448

HOSE CLAMP

#28, Stainless Steel

1шт.

8

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

9

832-46408

NUT,M8 x 1.25, Cl 8

1шт.
