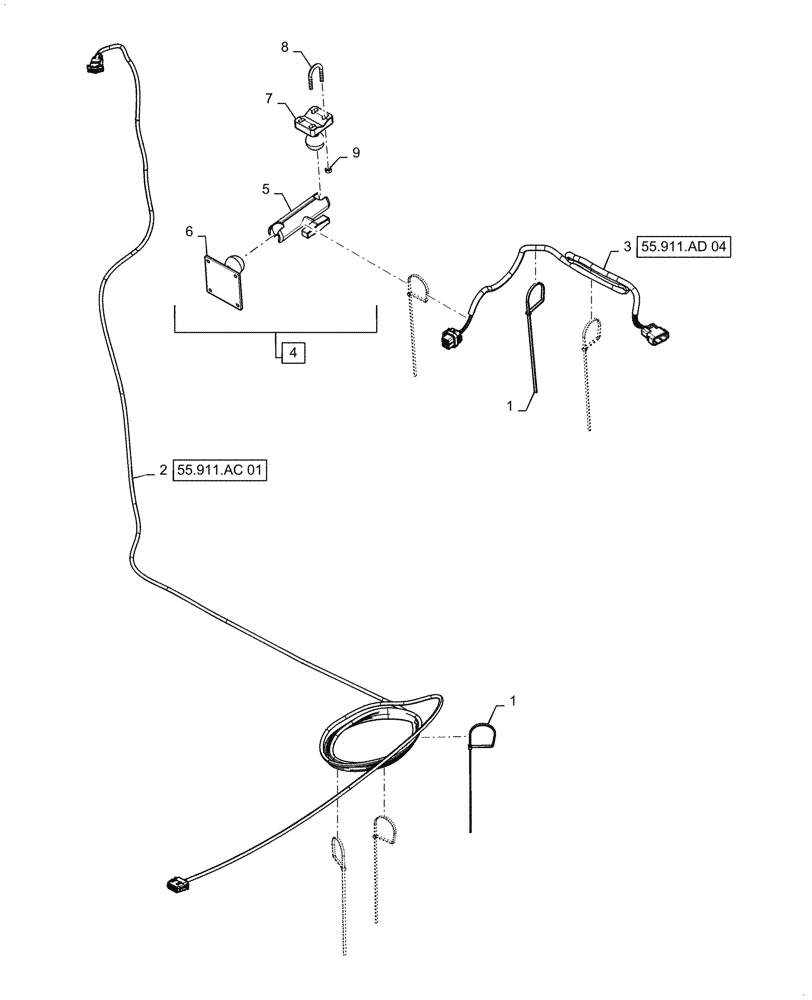

Запчасти Case IH PATRIOT 4440 (55.911.AD[03]) - AFS MONITOR READY PACKAGE (55) - ELECTRICAL SYSTEMS

1

BN570007

STRAP

14" Zip Tie

6шт.

2

47600698

WIRE HARNESS

GPS to Display

1шт.

See 55.911.AC 01

1шт.

3

87714577

HARNESS

Display

1шт.

See 55.911.AD 04

1шт.

4

87386396

MOUNT

Complete, Incl 5 - 9

1шт.

5

87284257

ARM

Double Socket, 1 1/2" Ball

1шт.

6

87386398

SUPPORTING ARM

Ram, Monitor

1шт.

7

87284259

PLATE

Ram, U Bolt

1шт.

8

86632541

U-BOLT,1/4” - 20, 1.75” L x 1” W

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.
