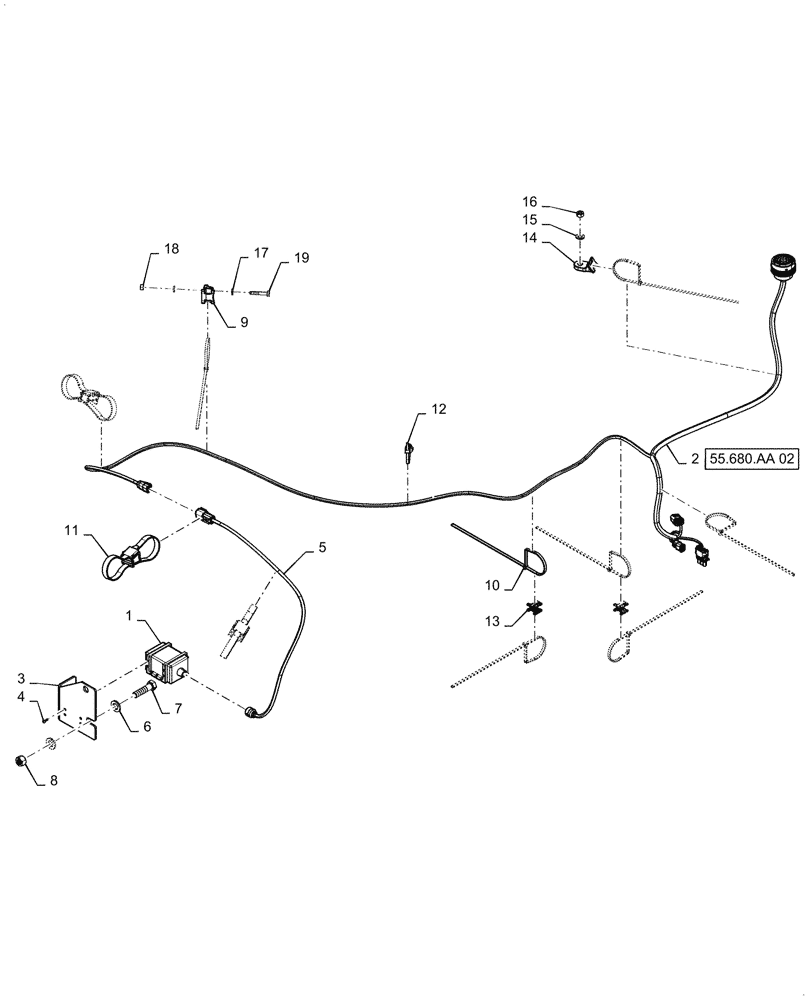

Запчасти Case IH PATRIOT 4440 (55.680.AI[02.1]) - AUTOGUIDANCE, FRAME HARNESS, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

1

87743199

MODULE

Trimble Autosense, Steering Angle Sensor

1шт.

2

84161537

WIRE HARNESS

Autoguidence Frame Harness

1шт.

3

47686234

MOUNT

Autosense Steering Angle Sensor

1шт.

4

47685656

SCREW

6 - 32 x 3/8", Pan Head, SST

4шт.

5

87743200

HARNESS

Jumper, 24", Autosense Steering Angle Sensor to Autoguidence Frame Harness

1шт.

6

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

7

86980424

BOLT,Hex, M12 x 1.75 x 45, Cl 8.8, DOR

2шт.

8

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

9

84360210

BASE

Tie

1шт.

10

BN570007

STRAP

14 1/2"

7шт.

11

47853521

CABLE TIE

16 1/2"

3шт.

12

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

1шт.

13

84318895

SPACER,17.97mm H

2шт.

14

84407295

BASE

Tie

1шт.

15

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

1шт.

16

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

17

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

18

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

1шт.

19

86980363

BOLT,Hex, M6 - 1 x 35mm, Cl 8.8, DOR

1шт.
