Запчасти Case IH PATRIOT 4440 (55.680.AI[02]) - AUTOGUIDANCE, FRAME, BSN YGT044001 (55) - ELECTRICAL SYSTEMS

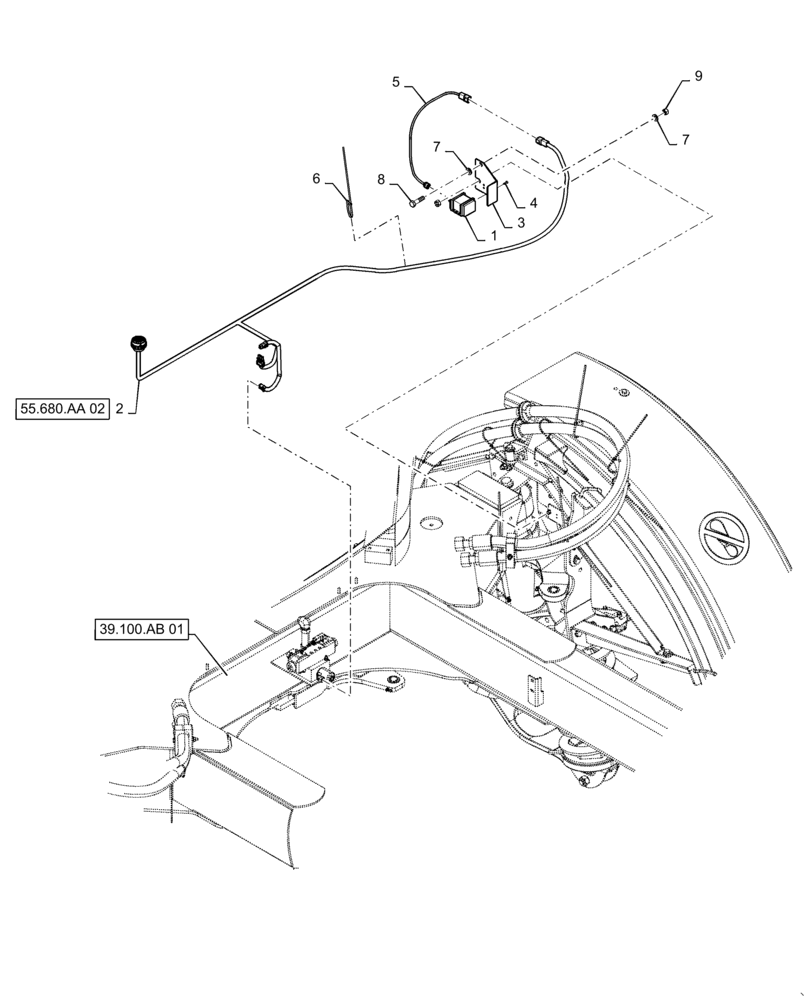

Схема запчастей Case IH PATRIOT 4440 - (55.680.AI[02]) - AUTOGUIDANCE, FRAME, BSN YGT044001 (55) - ELECTRICAL SYSTEMS
55.680.aa 02
7
5
1
2
6
8
3
4
39.100.ab 01
9
7

Артикул

Название

Примечание

Количество

1

87743199

MODULE

Trimble Autosense, Steering Angle Sensor

1шт.

2

84161537

WIRE HARNESS

Autoguidence Frame Harness

1шт.

3

47365834

MOUNT

Autosense Steering Angle Sensor

1шт.

4

47685656

SCREW

6 - 32 x 3/8", Pan - HD C/R SST PLN

4шт.

5

87743200

HARNESS

Jumper, 24", Autosense Steering Angle Sensor to Autoguidence Frame Harness

1шт.

6

BN570007

STRAP

Black Only .12 - 4.0 Band

5шт.

7

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

8

86980424

BOLT,Hex, M12 x 1.75 x 45, Cl 8.8, DOR

2шт.

9

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

Выбрано товаров: 9
