(55.680.AI[01.1]) - AUTOGUIDANCE CAB HARNESS, MOUNTING PARTS, SWITCH AND RELAYS, ASN YGT044000

Запчасти Case IH PATRIOT 4440 (55.680.AI[01.1]) - AUTOGUIDANCE CAB HARNESS, MOUNTING PARTS, SWITCH AND RELAYS, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

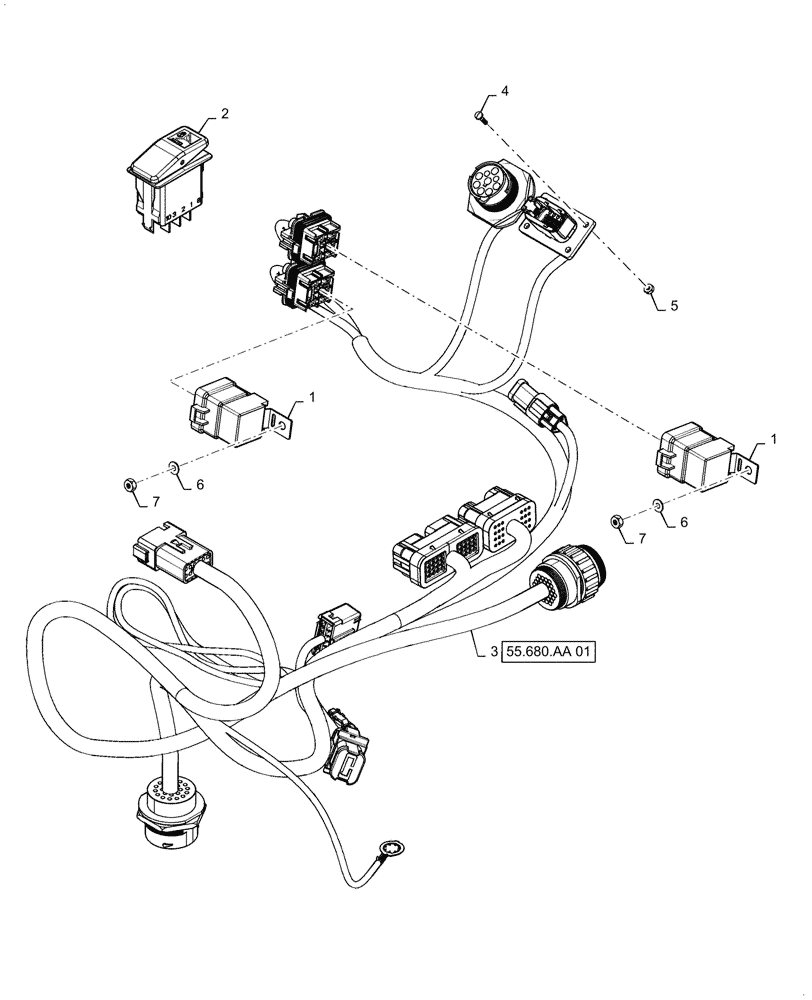

Схема запчастей Case IH PATRIOT 4440 - (55.680.AI[01.1]) - AUTOGUIDANCE CAB HARNESS, MOUNTING PARTS, SWITCH AND RELAYS, ASN YGT044000 (55) - ELECTRICAL SYSTEMS
55.680.aa 01
1
6
3
7
5
7
4
2
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

293256A2

RELAY,12V

280 Series

2шт.

2

87711789

AUTO GUIDANCE DISENG

Rocker Switch

1шт.

3

47377161

HARNESS

Cab Autoguidance

1шт.

4

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

4шт.

5

824-1403

NUT,M3, Cl 5

4шт.

6

13550001

WASHER,4.15mm ID x 10mm OD x 0.8mm Thk

2шт.

7

87016570

NUT

M4

2шт.

Выбрано товаров: 7
