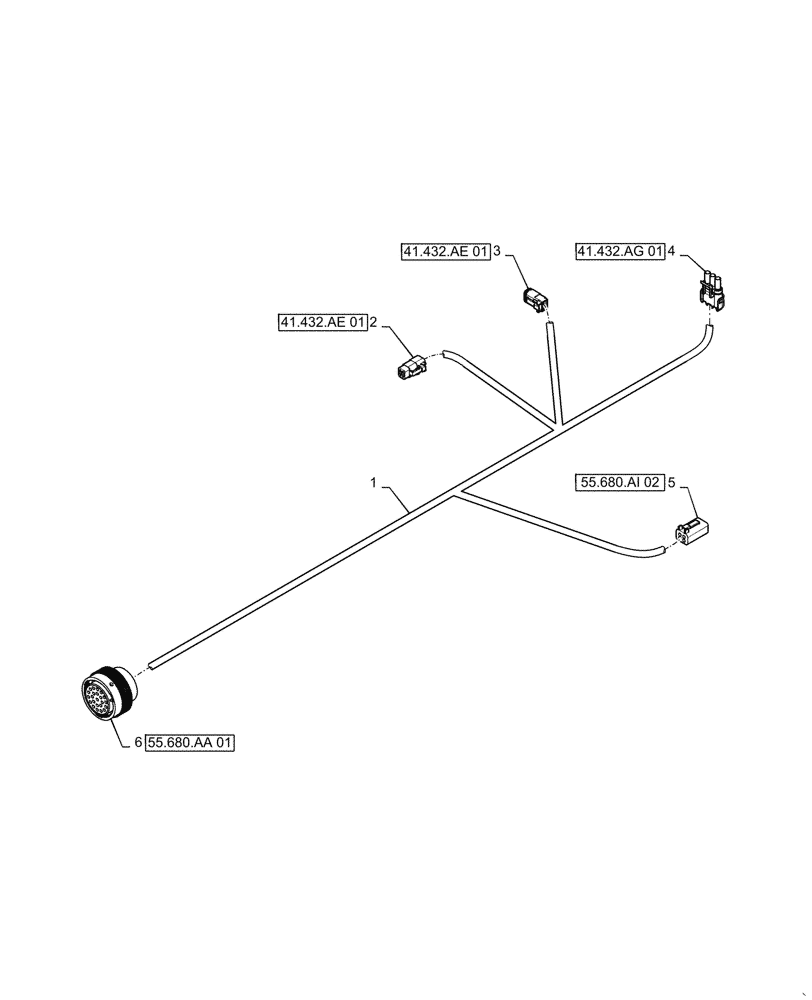

Запчасти Case IH PATRIOT 4440 (55.680.AA[02]) - AUTOGUIDANCE HARNESS, FRAME (55) - ELECTRICAL SYSTEMS

1

84161537

WIRE HARNESS

Frame Autoguide

1шт.

2

87695582

ELEC CONNECTOR,Female, 2 Pole

Override Valve, C713F

1шт.

2

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, Override Valve, C713F

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Override Valve, C713F

2шт.

3

87694153

CONTACT HOUSING,Female, 4 Cavities

Steering Valve, C714F

1шт.

3

87694146

ELEC CONNECTOR,Locking, Green

Wedge Lock, Steering Valve, C714F

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Override Valve, C714F

4шт.

4

87655394

WIRE CONNECTOR

Connector, Steering Override Switch, C715F

1шт.

4

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Steering Override Switch, C715F

3шт.

5

277904A1

ELEC CONNECTOR,Female, 4 Pin

Steering Angle Sensor, C716F

1шт.

5

279794A1

STOP LOCK,Locking, Orange

Wedge Lock, Steering Sensor, C716F

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Steering Sensor, C716F

4шт.

6

381150A1

CONNECTOR, ELEC

Connector, Female, Ag Cab Interface, CM07F

1шт.

6

84068583

PLUG,12 - 16 Ga, White

Seal, Ag Cab Interface, CM07F

10шт.

6

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Ag Cab Interface, CM07F

7шт.
