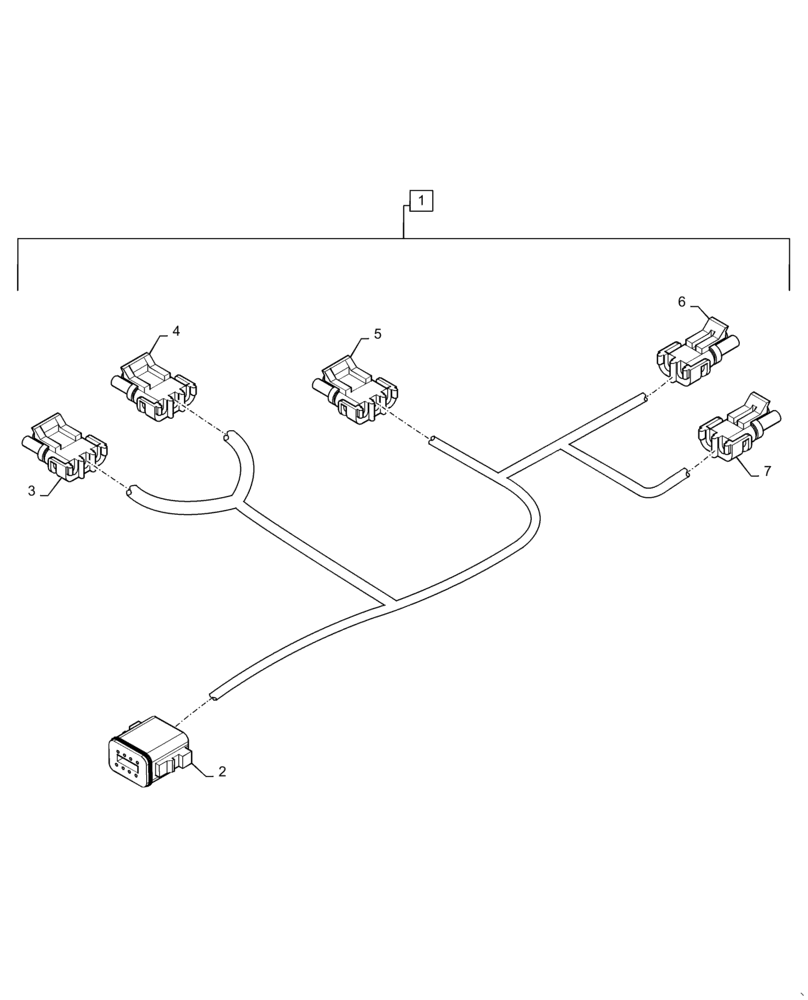

Запчасти Case IH PATRIOT 4440 (55.635.AO[02.2]) - 6 SECTION BOOM HARNESS (55) - ELECTRICAL SYSTEMS

1

343956A1

HARNESS

6 Section Boom Valve Control Harness, LH and RH Boom, Incl 2 - 7

2шт.

2

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

Product Harness Interface, X509F

1шт.

2

225321C1

WEDGE

CONNECTOR Wedge, Product Harness Interface, X509F

1шт.

2

225241C1

SOCKET

Terminal, Product Harness Interface, X509F

8шт.

3

245484C1

ELEC CONNECTOR,3 Pin

Inner Valve, X569

1шт.

3

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Inner Valve, X569

3шт.

3

225124C1

SEAL,2 - 2.9 mm2

Inner Valve, X569

3шт.

4

245484C1

ELEC CONNECTOR,3 Pin

Middle Valve, X571

1шт.

4

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Middle Valve, X571

3шт.

4

225124C1

SEAL,2 - 2.9 mm2

Middle Valve, X571

3шт.

5

245484C1

ELEC CONNECTOR,3 Pin

Outer Valve, X572

1шт.

5

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Outer Valve, X572

3шт.

5

225124C1

SEAL,2 - 2.9 mm2

Outer Valve, X572

3шт.

6

245482C1

ELEC CONNECTOR,2 Pin

Air Foam Solenoid, X573

1шт.

6

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Air Foam Solenoid, X573

2шт.

6

BN16174

DIODE,600V, 3A

3A, 600V, Air Foam Solenoid, D218

1шт.

7

245482C1

ELEC CONNECTOR,2 Pin

Fence Row Solenoid, X574

1шт.

7

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Fence Row Solenoid, X574

2шт.

7

BN16174

DIODE,600V, 3A

3A, 600V, Fence Row Solenoid, D216

1шт.
