1
47739472
TUBE
Exhaust, Turbo To DOC
1шт.
2
47368254
GASKET,133.8mm ID x 154mm OD x 4.6mm Thk
5", Exhaust
2шт.
3
47409470
MOUNTING PLATE
Exhaust
1шт.
4
84568366
MOUNT
SCR
1шт.
5
47418294
MOUNTING PLATE
DOC
1шт.
6
47447011
MUFFLER
DOC
1шт.
7
47403699
TUBE
DOC To SCR
1шт.
8
47368248
GASKET,1.3mm Thk
4.50", Exhaust
1шт.
9
47403698
TUBE
Exhaust, Stack
1шт.
10
47515805
MUFFLER
SCR
1шт.
11
84422747
SENSOR,NOx, 12V, 5 Pin, 615mm L
NOX, 12V
2шт.
12
47478880
TEMPERATURE SENDER,50mm, Closed
Temperture
3шт.
13
47368959
ECU
NH3
1шт.
14
47520140
SENSOR,8 Pin
NH3
1шт.
15
84602692
STRAP
Securing, SCR
2шт.
16
87529310
WASHER,13.5mm ID x 28mm OD x 4mm Thk
13.5mm x 28mm x4mm, DOR
8шт.
17
BN300407
FLANGE NUT
1/2" - 13, G8
8шт.
18
87529316
WASHER,9mm ID x 21mm OD x 2.5mm Thk
26шт.
19
86980514
LOCK NUT,Hex, M8, Cl 8, DOR
13шт.
20
86980380
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
13шт.
21
47423405
SUPPORT
Deairation Tank
1шт.
22
BN306386
CLAMP,129.5mm ID
Engine Exhaust
1шт.
23
47368239
CLAMP
Marmom, 4.50"
1шт.
24
47368240
CLAMP
Marmom, 5"
2шт.
25
47423212
CLAMP
Exhaust Flap, Cursor 9, SST
1шт.
26
47499822
MOUNTING PLATE
Exhaust Tube
1шт.
27
47438192
SUPPORT
Sensor
1шт.
28
87529314
WASHER,6.6mm ID x 12.5mm OD x 2mm Thk
8шт.
29
86980360
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
6шт.
30
86980513
NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR
4шт.
31
87529312
WASHER,11mm ID x 24mm OD x 3mm Thk
8шт.
32
86980401
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
8шт.
33
47431951
STRAP
Securing, DOC
2шт.
34
47537810
INJECTOR, EMISSIONS,12 KG/HR
Denox 2.2
1шт.
34
47537810R
REMAN-INJEC EMISSION
Denox
1шт.
34
47537810C
CORE-INJEC EMISSION
Return Number
1шт.
35
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
3шт.
36
14432221
HEX SOC SCREW,M6 x 1.0 x 28mm, Cl 8.8
3шт.
37
BN570007
STRAP
Black Only, Band
5шт.

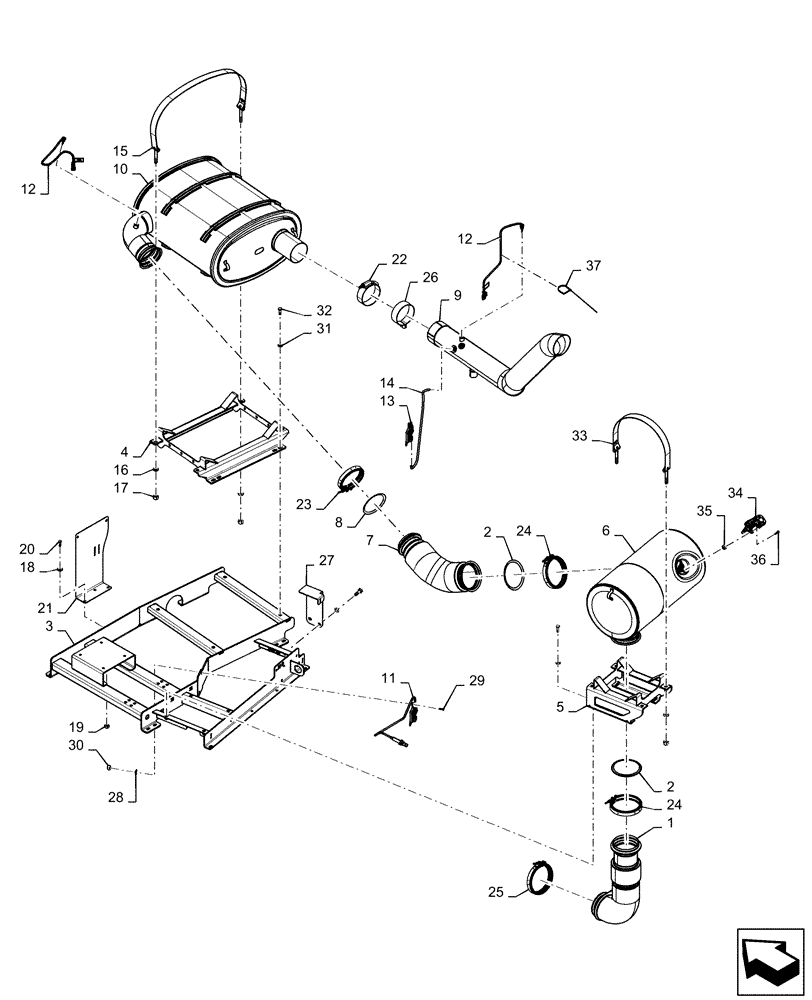

![Схема запчастей Case IH PATRIOT 4440 - (10.254.AD[01]) - EXHAUST SYSTEM, BSN YGT044001 (10) - ENGINE](https://partsell.ru/storage/images/caseih/5248724.png)
