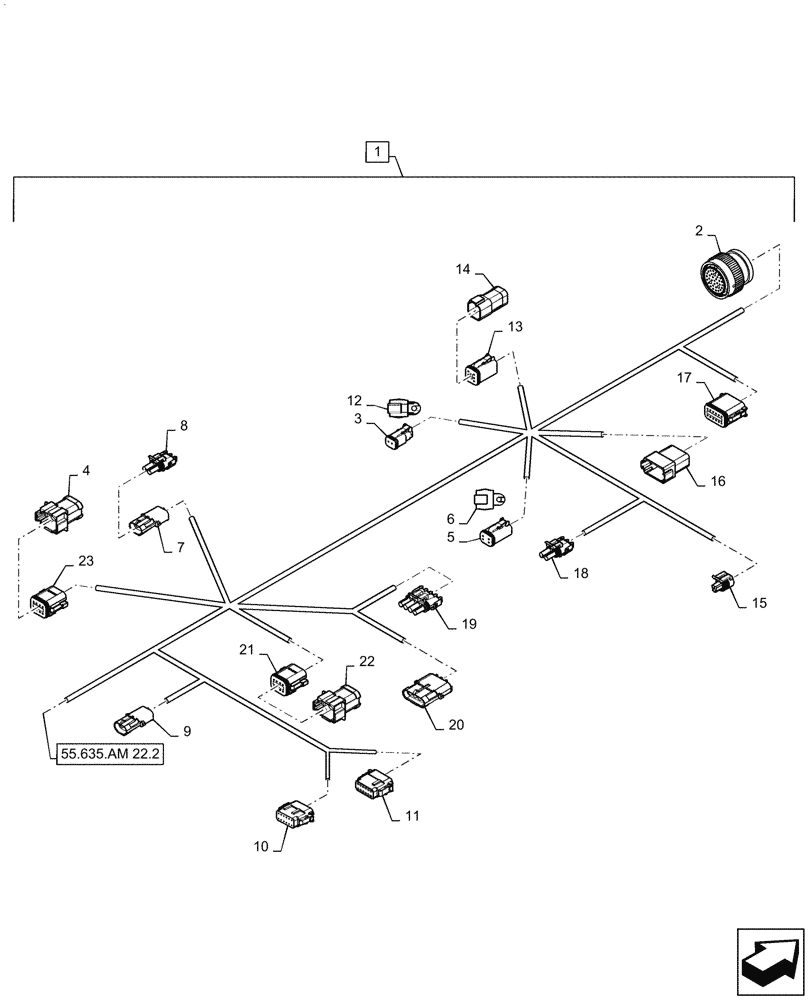

Запчасти Case IH PATRIOT 4440 (55.635.AM[21.1]) - PRODUCT CONTROL HARNESS, FRAME, ASN YGT042518, BSN YGT044001 (55) - ELECTRICAL SYSTEMS

1

47910708

WIRE HARNESS

Product Control, Incl 2 - 24

1шт.

2

87700817

ELEC CONNECTOR

Female, 35 Cavity, Bulkhead, Product To Cab, XB-5F

1шт.

2

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Bulkhead, Product To Cab, XB-5F

20шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Bulkhead, Product To Cab, XB-5F

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Blind Seal, Bulkhead, Product To Cab, XB-5F

2шт.

2

84807680

PLUG

Blind Seal, Red, Bulkhead, Product To Cab, XB-5F

12шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

Controller Power, X-500F

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Controller Power, X-500F

2шт.

3

84074638

LOCKING TAB,Locking Wedge, Green

Controller Power, X-500F

1шт.

4

87587627

CONTACT HOUSING

Cap, 3 & 5 Way Splice, X-555M

1шт.

5

87694153

CONTACT HOUSING,Female, 4 Cavities

Can Buss Interface, X-209F

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Can Buss Interface, X-209F

4шт.

5

84074640

LOCKING TAB,Wedge Lock

Wedge Lock, Can Buss Interface, X-209F

1шт.

6

84391166

WIRE CONNECTOR,Male, 4 Pins

Can Buss Interface Cap, X-209M

1шт.

7

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Accessory Power, X-503M

1шт.

7

87692882

ELEC. TERMINAL PIN

Male, Tin, Accessory Power, X-503M

2шт.

7

87680710

SEAL

Cable, Gray, Accessory Power, X-503M

2шт.

8

87692855

CONTACT HOUSING,Male, 2 Cavities

Cap, Accessory Power, X-503F

1шт.

8

87686742

PLUG

Cap, Accessory Power, X-503F

2шт.

9

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Product Pump PSI Switch, X-502M

1шт.

9

87692880

CABLE TERMINAL

Male, Tin, Product Pump PSI Switch, X-502M

1шт.

9

87692882

ELEC. TERMINAL PIN

Male, Tin, Product Pump PSI Switch, X-502M

1шт.

9

84286327

SEAL

Cable, Green, Product Pump PSI Switch, X-502M

1шт.

9

87680710

SEAL

Cable, Gray, Product Pump PSI Switch, X-502M

1шт.

10

87700156

CONTACT HOUSING,Female, 12 Pole

Product Node A, X-552F

1шт.

10

84807680

PLUG

Blind Seal, Product Node A, X-552F

4шт.

10

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Product Node A, X-552F

8шт.

10

87705198

WEDGE

Lock, Product Node A, X-552F

1шт.

11

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Product Node B, X-553F

1шт.

11

84807680

PLUG

Blind Seal, Product Node B, X-553F

3шт.

11

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Product Node B, X-553F

9шт.

11

87705198

WEDGE

Lock, Product Node B, X-553F

1шт.

12

84391159

WIRE CONNECTOR

Controller Power, X-500M

1шт.

13

76074075

ELEC CONNECTOR

6 Way Splice Pack, X-757F

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice Pack, X-757F

5шт.

13

84068583

PLUG,12 - 16 Ga, White

Blind Seal, Splice Pack, X-757F

1шт.

13

87694149

ELEC CONNECTOR

Wedge Lock, Splice Pack, X-757F

1шт.

14

87587623

CONTACT HOUSING

6 Way Splice Pack, X-757M

1шт.

15

84078681

WIRE CONNECTOR,Female

3 Cavity, Sparge PSI Sensor, X-519F

1шт.

15

87693328

TERMINAL

Female, Tin, Sparge PSI Sensor, X-519F

2шт.

15

87688852

ELEC. TERMINAL PIN

Female, Tin, Sparge PSI Sensor, X-519F

1шт.

16

87695724

ELEC CONNECTOR,Male, 12 Pole

Boom Interface, X-523M

1шт.

16

87695623

ELEC. TERMINAL PIN

Male, Nickel, Boom Interface, X-523M

11шт.

16

84068583

PLUG,12 - 16 Ga, White

Boom Interface, X-523M

1шт.

16

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Boom Interface, X-523M

1шт.

17

87695592

CONTACT HOUSING,Female, 12 Pole

Boom Interface, X-523F

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Boom Interface, X-523F

9шт.

17

84068583

PLUG,12 - 16 Ga, White

Boom Interface, X-523F

3шт.

17

87695651

LOCKING TAB,Wedge Lock

Wedge Lock, Boom Interface, X-523F

1шт.

18

87692855

CONTACT HOUSING,Male, 2 Cavities

Sparge Valve, X-518F

1шт.

18

87692856

CABLE TERMINAL

Female, Tin, Sparge Valve, X-518F

2шт.

18

84286327

SEAL

Cable, Green, Sparge Valve, X-518F

2шт.

19

87692817

ELEC CONNECTOR

4 Cavity, Remote / AIM, X-517F

1шт.

19

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Remote / AIM, X-517F

3шт.

19

87692856

CABLE TERMINAL

Female, Tin, Remote / AIM, X-517F

1шт.

19

84286327

SEAL

Cable, Green, Remote / AIM, C517F

1шт.

19

87680710

SEAL

Cable, Gray, Remote / AIM, C517F

3шт.

20

47702209

ELEC CONNECTOR

4 Cavity, Boost Module Remote / AIM Out, X-520M

1шт.

20

87692882

ELEC. TERMINAL PIN

Male, Tin, Boost Module Remote / AIM Out, X-520M

2шт.

20

87692880

CABLE TERMINAL

Male, Tin, Boost Module Remote / AIM Out, X-520M

2шт.

20

84286327

SEAL

Cable, Green, Boost Module Remote / AIM Out, X-520M

2шт.

20

87680710

SEAL

Cable, Gray, Boost Module Remote / AIM Out, X-520M

2шт.

21

87700325

ELEC CONNECTOR,Female, 8 Cavities

8 Way Splice Pack, X-551F

1шт.

21

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

8 Way Splice Pack, X-551F

4шт.

21

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

8 Way Splice Pack, X-551F

3шт.

21

84068583

PLUG,12 - 16 Ga, White

8 Way Splice Pack, X-551F

1шт.

21

84806312

LOCKING TAB,Wedge Lock

Wedge Lock, 8 Way Splice Pack, X-551F

1шт.

22

87270259

ELEC CONNECTOR

8 Way Splice Pack, X-551M

1шт.

23

87700325

ELEC CONNECTOR,Female, 8 Cavities

3 & 5 Way Splice, X-555F

1шт.

23

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

3 & 5 Way Splice, X-555F

1шт.

23

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

3 & 5 Way Splice, X-555F

3шт.

23

84068583

PLUG,12 - 16 Ga, White

3 & 5 Way Splice, X-555F

4шт.

23

84806312

LOCKING TAB,Wedge Lock

Wedge Lock, 3 & 5 Way Splice, X-555F

1шт.
