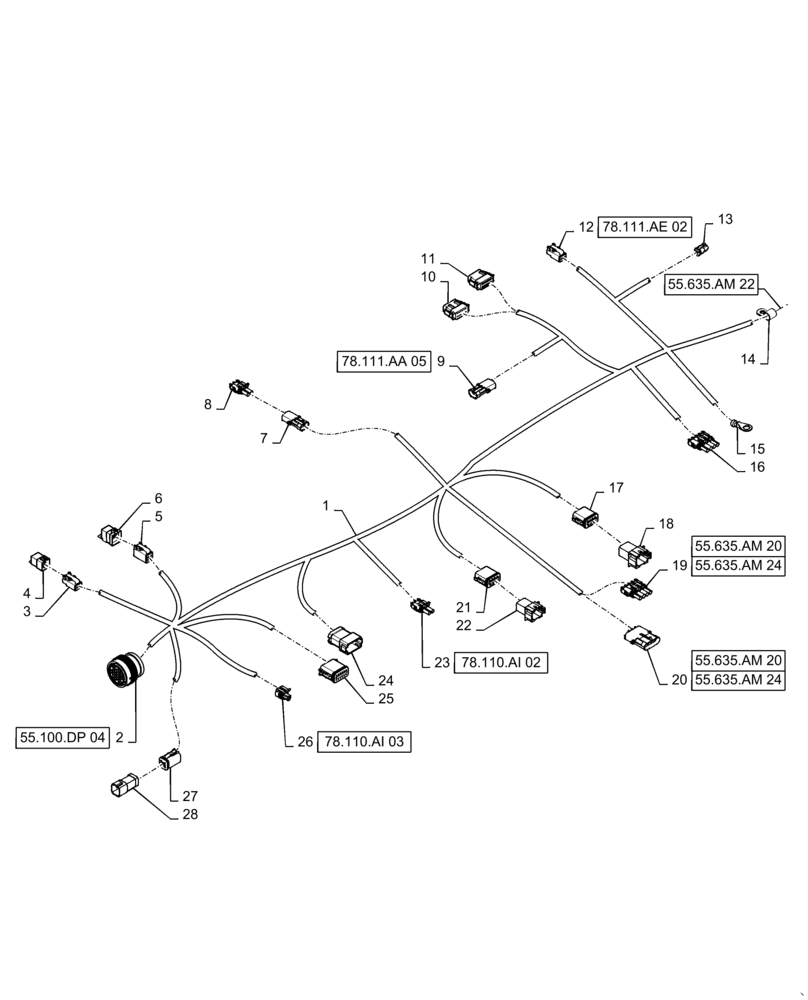

Запчасти Case IH PATRIOT 4440 (55.635.AM[21]) - PRODUCT CONTROL HARNESS, FRAME, FRONT HALF, BSN YGT042519 (55) - ELECTRICAL SYSTEMS

1

84397004

HARNESS

Product Control

1шт.

2

380841A1

TERMINAL CONNECTOR

Bulkhead, Product To Cab, CM5F

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Bulkhead, Product To Cab, CM5F

14шт.

2

225039C1

TERMINAL

Bulkhead, Product To Cab, CM5F

16шт.

2

225365C1

SOCKET

Bulkhead, Product To Cab, CM5F

5шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

Controller Power, C500F

1шт.

3

87695649

ELEC CONNECTOR,Locking, Green

Controller Power, C500F

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Controller Power, C500F

2шт.

4

84391159

WIRE CONNECTOR

Controller Power Cap, C500M

1шт.

5

87694153

CONTACT HOUSING,Female, 4 Cavities

Can Buss Interface, C209F

1шт.

5

87694146

ELEC CONNECTOR,Locking, Green

Can Buss Interface, C209F

1шт.

5

225365C1

SOCKET

Can Buss Interface, C209F

2шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Can Buss Interface, C209F

2шт.

6

84391166

WIRE CONNECTOR,Male, 4 Pins

Can Buss Interface Cap, C209F

1шт.

7

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Accessory Power, C503M

1шт.

7

225119C1

TERMINAL

Accessory Power, C503M

2шт.

8

87692855

CONTACT HOUSING,Male, 2 Cavities

Accessory Power Cap, C503M

1шт.

8

87686742

PLUG

Accessory Power Cap, C503M

2шт.

9

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Product Pump PSI Switch, C502M

1шт.

9

225119C1

TERMINAL

Product Pump PSI Switch, C502M

1шт.

9

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Product Pump PSI Switch, C502M

1шт.

10

87700156

CONTACT HOUSING,Female, 12 Pole

Product Node A, C552F

1шт.

10

84807680

PLUG

Product Node A, C552F

4шт.

10

223953A1

SOCKET/RECEPTACLE

Product Node A, C552F

6шт.

10

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Product Node A, C552F

4шт.

11

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Product Node B, C553F

1шт.

11

84807680

PLUG

Product Node B, C553F

3шт.

11

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Product Node B, C553F

9шт.

12

87696551

CONTACT HOUSING,Female, 3 Pole

Flowmeter, C506F

1шт.

12

87705586

WEDGE

Flowmeter, C506F

1шт.

12

225039C1

TERMINAL

Flowmeter, C506F

3шт.

13

87695580

ELEC CONNECTOR,Female, 3 Pole

DX Product Interface, C505F

1шт.

13

84074639

LOCKING TAB,Wedge Lock

DX Product Interface, C505F

1шт.

13

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

DX Product Interface, C505F

3шт.

14

87564736

CLAMP,14.3mm, Insul, M6 Bolt

1шт.

15

84140737

TERMINAL CONNECTOR

Chassis Ground, G1

1шт.

16

245486C1

ELEC CONNECTOR,4 Pin

Product Pump Boost, C504F

1шт.

16

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

4шт.

17

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

3 Way And 5 Way Splice, C555F

1шт.

17

84068583

PLUG,12 - 16 Ga, White

3 Way And 5 Way Splice, C555F

4шт.

17

225321C1

WEDGE

Connector Wedge, 3 Way And 5 Way Splice, C555F

1шт.

17

225365C1

SOCKET

3 Way And 5 Way Splice, C555F

4шт.

18

87587627

CONTACT HOUSING

3 Way And 5 Way Splice Pack, C555M

1шт.

19

245486C1

ELEC CONNECTOR,4 Pin

Remote In AIM, C517F

1шт.

19

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Remote In AIM, C517F

2шт.

19

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Remote In AIM, C517F

2шт.

20

245487C1

ELEC CONNECTOR,Male, 4 Pin

Remote Out AIM, C520M

1шт.

20

225119C1

TERMINAL

Remote Out AIM, C520M

4шт.

21

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

8 Way Splice, C551F

1шт.

21

225321C1

WEDGE

Connector 8 Way Splice, C551F

1шт.

21

84068583

PLUG,12 - 16 Ga, White

8 Way Splice, C551F

1шт.

21

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

8 Way Splice, C551F

4шт.

21

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

8 Way Splice, C551F

3шт.

22

87270259

ELEC CONNECTOR

8 Way Splice Pack, C551M

1шт.

23

87692855

CONTACT HOUSING,Male, 2 Cavities

Sparge Valve, C518F

1шт.

23

225119C1

TERMINAL

Sparge Valve, C518F

2шт.

24

87695724

ELEC CONNECTOR,Male, 12 Pole

Boom Interface, C523M

1шт.

24

84068583

PLUG,12 - 16 Ga, White

Boom Interface, C523M

1шт.

24

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Boom Interface, C523M

1шт.

24

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Boom Interface, C523M

11шт.

25

87695592

CONTACT HOUSING,Female, 12 Pole

Boom Interface, C523F

1шт.

25

87695651

LOCKING TAB,Wedge Lock

Boom Interface, C523F

1шт.

25

84068583

PLUG,12 - 16 Ga, White

Boom Interface, C523F

3шт.

25

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Boom Interface, C523F

9шт.

26

84078681

WIRE CONNECTOR,Female

Sparge PSI Sensor, C519F

1шт.

26

87688852

ELEC. TERMINAL PIN

Sparge PSI Sensor, C519F

3шт.

27

76074075

ELEC CONNECTOR

Splice Pack, C757F

1шт.

27

87694149

ELEC CONNECTOR

Splice Pack, C757F

1шт.

27

84068583

PLUG,12 - 16 Ga, White

Splice Pack, C757F

1шт.

27

225365C1

SOCKET

Splice Pack, C757F

5шт.

28

87587623

CONTACT HOUSING

6 Way Splice Pack, C757M

1шт.
