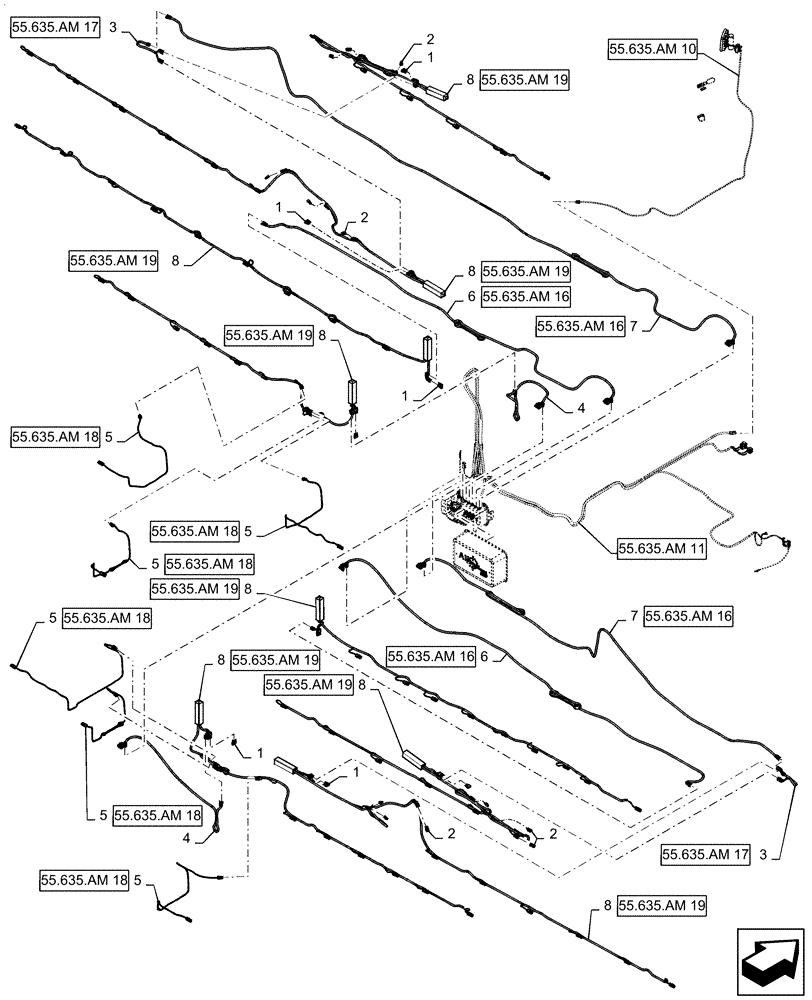

Запчасти Case IH PATRIOT 4440 (55.635.AM[14]) - AIM COMMAND PRO, 100, 6 SECTION, BOOM HARNESSES (55) - ELECTRICAL SYSTEMS

1

87692817

ELEC CONNECTOR

6W

8шт.

2

87697537

ELEC CONNECTOR

2W

12шт.

3

47584831

WIRE HARNESS

Y-Adapter, 6 Connector, Can-Bus

2шт.

See 55.635.AM 17 For Service Parts

1шт.

4

47552086

EXTENSION

5', 6 Connector Extension Harness, Aim Command Pro

2шт.

See 55.635.AM 16 For Service Parts

1шт.

5

47552085

WIRE HARNESS

5' Nozzle Harness, Aim Command Pro

6шт.

See 55.635.AM 18 For Service Parts

1шт.

6

47552089

WIRE HARNESS

20', 6 Connector Extension Harness, Aim Command Pro

2шт.

See 55.635.AM 16 For Service Parts

1шт.

7

47552094

EXTENSION

45', 6 Connector Extension Harness, Aim Command Pro

2шт.

See 55.635.AM 16 For Service Parts

1шт.

8

47552079

WIRE HARNESS

Module, VCM, 9 Nozzle x 20"

8шт.

See 55.635.AM 19 For Service Parts

1шт.
