Запчасти Case IH PATRIOT 4440 (10.216.BA[01.1]) - FUEL LINE & INLINE FILTER, ASN YGT044000 (10) - ENGINE

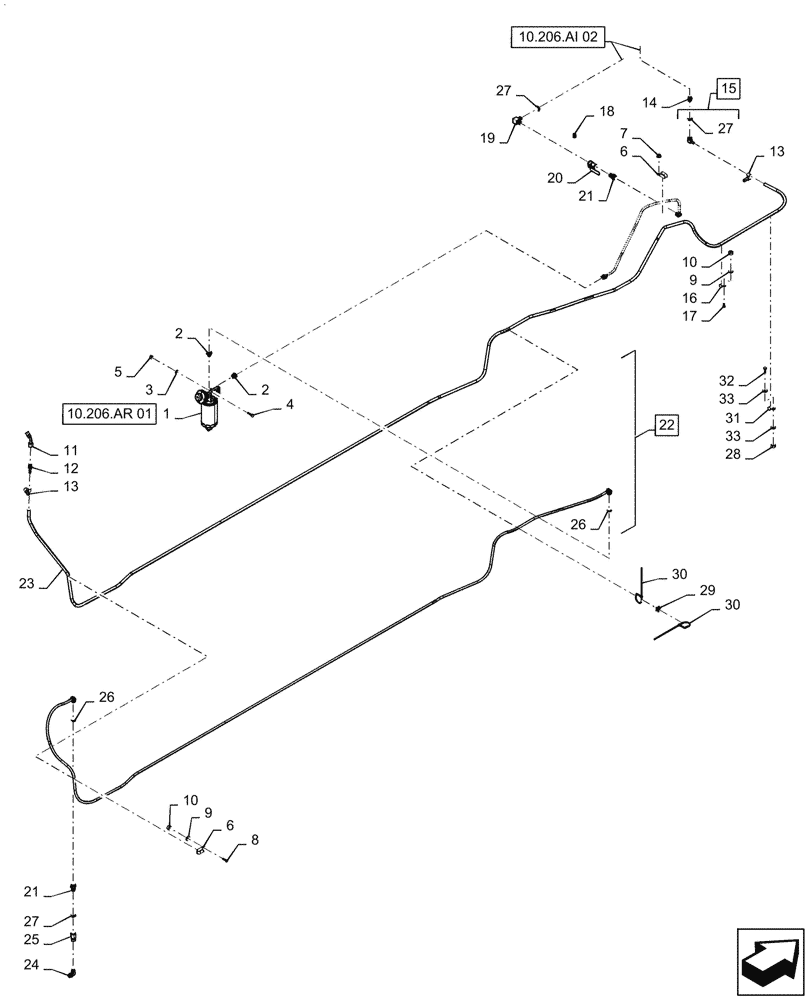

Схема запчастей Case IH PATRIOT 4440 - (10.216.BA[01.1]) - FUEL LINE & INLINE FILTER, ASN YGT044000 (10) - ENGINE
10.206.ar 01
29
19
26
3
21
1
33
8
10
14
24
25
27
4
21
32
11
23
16
6
27
2
9
13
30
7
18
6
17
15
26
28
12
27
10
30
20
9
31
33
2
13
22
5
10.206.ai 02

Артикул

Название

Примечание

Количество

1

84348875

FILTER ASSY

Incl Filter

1шт.

2

47728714

ADAPTER

Quick Coupler to M 14 x 1.5

2шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

6

R54363

CLAMP

Double

2шт.

7

87344227

SERRATED NUT

Serrated, M8, SPL, DOR

1шт.

8

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

9

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

10

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

11

84342025

ADAPTER

M16 x 1.5 F 24° Swivel x 3/8 NPT

1шт.

12

86625229

FITTING,3/8" Hose X 3/8" NPTF Beaded

1шт.

13

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

14

87270105

FITTING

Quick Connect, 3/8" NPT

1шт.

15

87400460

90 ELBOW

3/8" Hose x NG-8, Incl 27

1шт.

16

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

17

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

18

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

19

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

20

87265539

VALVE

Ball, 1/2" NPT

1шт.

21

87270102

FITTING,1/2" NPTF to Quick Connect

2шт.

22

47440909

FUEL HOSE

Filter to Engine, Incl 26

1шт.

23

47440910

HOSE

Return Line, Engine to Tank

1шт.

24

5154710

ELBOW,3/4"-16 UNF, M16 x 1.5

90º, 3/4" - 16 Male x M16 - 1.5

1шт.

25

84329841

HYD CONNECTOR,3/4" - 16 x 1/2" - 14

1шт.

26

87445405

O-RING

Fuel line

4шт.

27

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

Used on Ref 25

1шт.

28

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

29

84318895

SPACER,17.97mm H

1шт.

30

BN570007

STRAP

14" Zip Tie

2шт.

31

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

32

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

33

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

Выбрано товаров: 33
