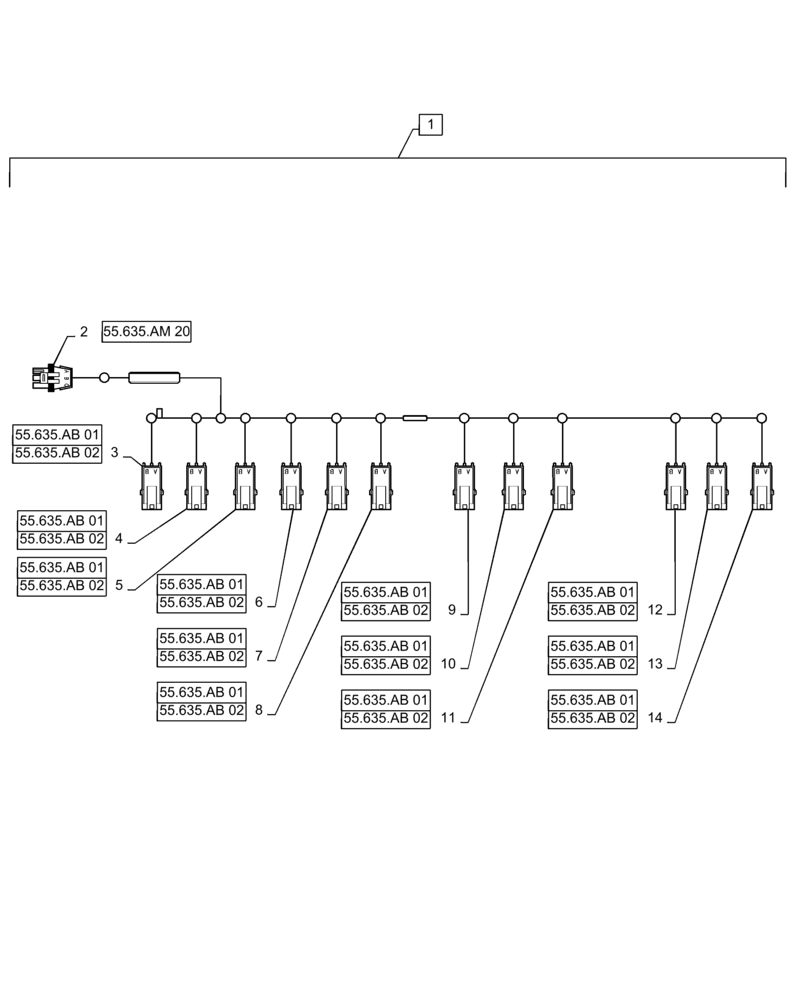

Запчасти Case IH PATRIOT 4440 (55.635.AM[07]) - AIM COMMAND, 100, 6 SECTION, OUTER HARNESS, 12 NOZZLE (55) - ELECTRICAL SYSTEMS

1

87381642

WIRE HARNESS

Aim Command, 6 Section, 100' Boom, Outer Sections, 12 Nozzle

1шт.

2

245484C1

ELEC CONNECTOR,3 Pin

Aim Command Central Harness, P100

1шт.

2

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Aim Command Central Harness, P100

3шт.

2

225126C1

CONNECTOR, ELEC

Connector Seal, Aim Command Central Harness, P100

1шт.

3

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J001

1шт.

3

225119C1

TERMINAL

Nozzle Solenoid Connector, J001

2шт.

3

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J001

2шт.

4

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J002

1шт.

4

225119C1

TERMINAL

Nozzle Solenoid Connector, J002

2шт.

4

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J002

2шт.

5

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J003

1шт.

5

225119C1

TERMINAL

Nozzle Solenoid Connector, J003

2шт.

5

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J003

2шт.

6

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J004

1шт.

6

225119C1

TERMINAL

Nozzle Solenoid Connector, J004

2шт.

6

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J004

2шт.

7

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J005

1шт.

7

225119C1

TERMINAL

Nozzle Solenoid Connector, J005

2шт.

7

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J005

2шт.

8

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J006

1шт.

8

225119C1

TERMINAL

Nozzle Solenoid Connector, J006

2шт.

8

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J006

2шт.

9

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J007

1шт.

9

225119C1

TERMINAL

Nozzle Solenoid Connector, J007

2шт.

9

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J007

2шт.

10

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J008

1шт.

10

225119C1

TERMINAL

Nozzle Solenoid Connector, J008

2шт.

10

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J008

2шт.

11

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J009

1шт.

11

225119C1

TERMINAL

Nozzle Solenoid Connector, J009

2шт.

11

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J009

2шт.

12

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J010

1шт.

12

225119C1

TERMINAL

Nozzle Solenoid Connector, J010

2шт.

12

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J010

2шт.

13

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J011

1шт.

13

225119C1

TERMINAL

Nozzle Solenoid Connector, J011

2шт.

13

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J011

2шт.

14

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J012

1шт.

14

225119C1

TERMINAL

Nozzle Solenoid Connector, J012

2шт.

14

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J012

2шт.
