(55.635.AJ[04]) - 90, 5 SECTION BOOM, CENTER SECTION, HARNESS LAYOUT, ASN YGT044000

Запчасти Case IH PATRIOT 4440 (55.635.AJ[04]) - 90, 5 SECTION BOOM, CENTER SECTION, HARNESS LAYOUT, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

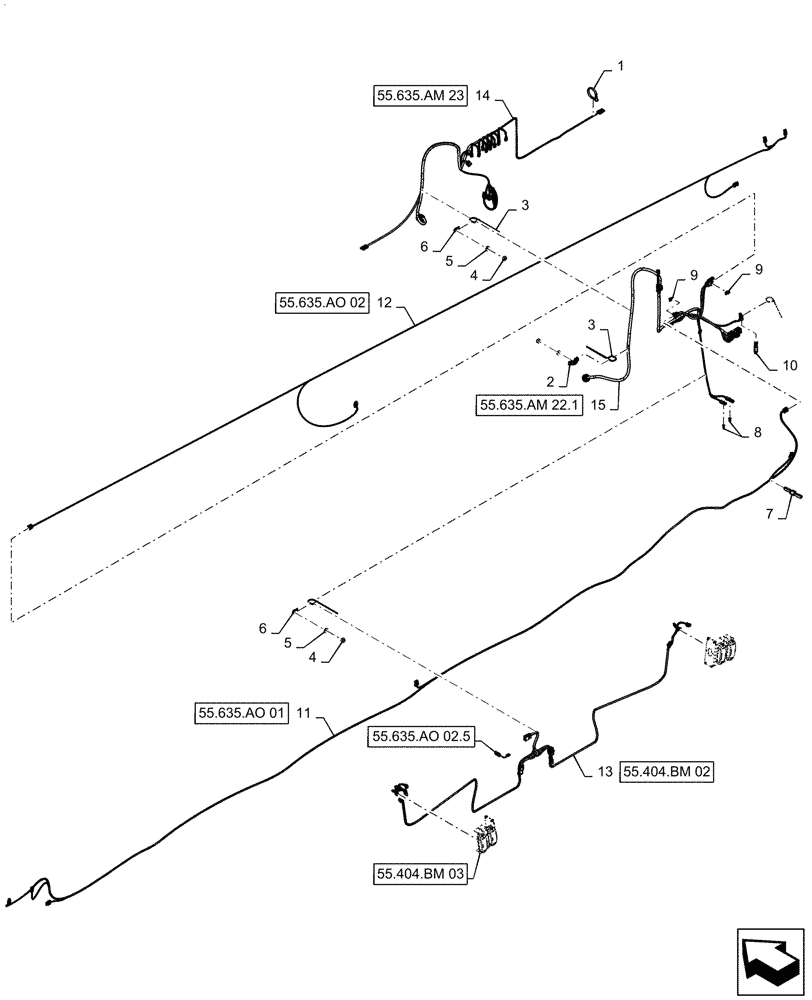

Схема запчастей Case IH PATRIOT 4440 - (55.635.AJ[04]) - 90, 5 SECTION BOOM, CENTER SECTION, HARNESS LAYOUT, ASN YGT044000 (55) - ELECTRICAL SYSTEMS
55.635.ao 01
14
12
4
9
15
8
10
11
9
6
4
2
7
5
5
13
6
1
3
3
55.635.ao 02
55.635.ao 02.5
55.635.am 22.1
55.404.bm 03
55.404.bm 02
55.635.am 23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86991007

CABLE TIE,509mm L

5шт.

2

84360209

BASE

Tie, Double Strap

2шт.

3

BN570007

STRAP

14" Zip Tie

50шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

21шт.

5

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

21шт.

6

84474186

BASE

Tie, Single Strap

21шт.

7

47853521

CABLE TIE

Dual Dividing

2шт.

8

86017581

FASTENER

Connector, Fir Tree

2шт.

9

84322203

CLIP

Connector, Fir Tree, Non Rotating

2шт.

10

47995115

SENSOR

Product Pressure

1шт.

11

343957A1

HARNESS

LH 5 Section Boom Harness

1шт.

12

343958A1

HARNESS

RH 5 Section Boom Harness

1шт.

13

47750805

WIRE HARNESS

Tail Light Extension

1шт.

14

84281621

HARNESS

Hydraulic Control

1шт.

15

47984271

WIRE HARNESS

Product Control

1шт.
