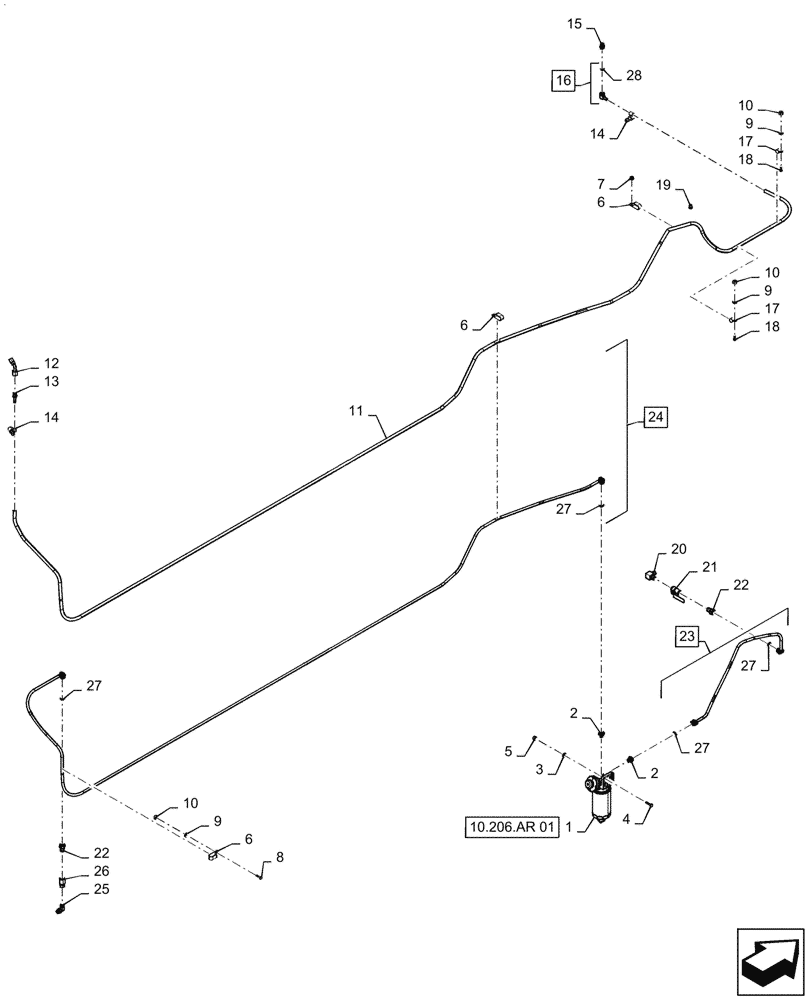

Запчасти Case IH PATRIOT 4440 (10.216.BA[01]) - FUEL LINES AND FITTINGS, BSN YGT044001 (10) - ENGINE

1

84348875

FILTER ASSY

Incl Filter

1шт.

2

47728714

ADAPTER

Quick Coupler to M 14 x 1.5

2шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

6

R54363

CLAMP

Double

3шт.

7

87344227

SERRATED NUT

Serrated, M8, SPL, DOR

1шт.

8

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

9

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

10

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

11

47440910

HOSE

Return Line, Engine to Tank

1шт.

12

84342025

ADAPTER

M16 x 1.5 F 24° Swivel x 3/8 NPT

1шт.

13

86625229

FITTING,3/8" Hose X 3/8" NPTF Beaded

1шт.

14

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

15

87270105

FITTING

Quick Connect, 3/8" NPT

1шт.

16

87400460

90 ELBOW

3/8" Hose x NG-8, Incl 28

1шт.

17

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

18

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

19

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

20

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

21

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

1шт.

22

87270102

FITTING,1/2" NPTF to Quick Connect

2шт.

23

47440908

FUEL HOSE

Tank to Filter, Incl 27

1шт.

24

47440909

FUEL HOSE

Filter to Engine, Incl 27

1шт.

25

5154710

ELBOW,3/4"-16 UNF, M16 x 1.5

90º, 3/4" - 16 Male x M16 - 1.5

1шт.

26

84329841

HYD CONNECTOR,3/4" - 16 x 1/2" - 14

1шт.

27

87445405

O-RING

Fuel line

4шт.

28

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

Used on Ref 25

1шт.
