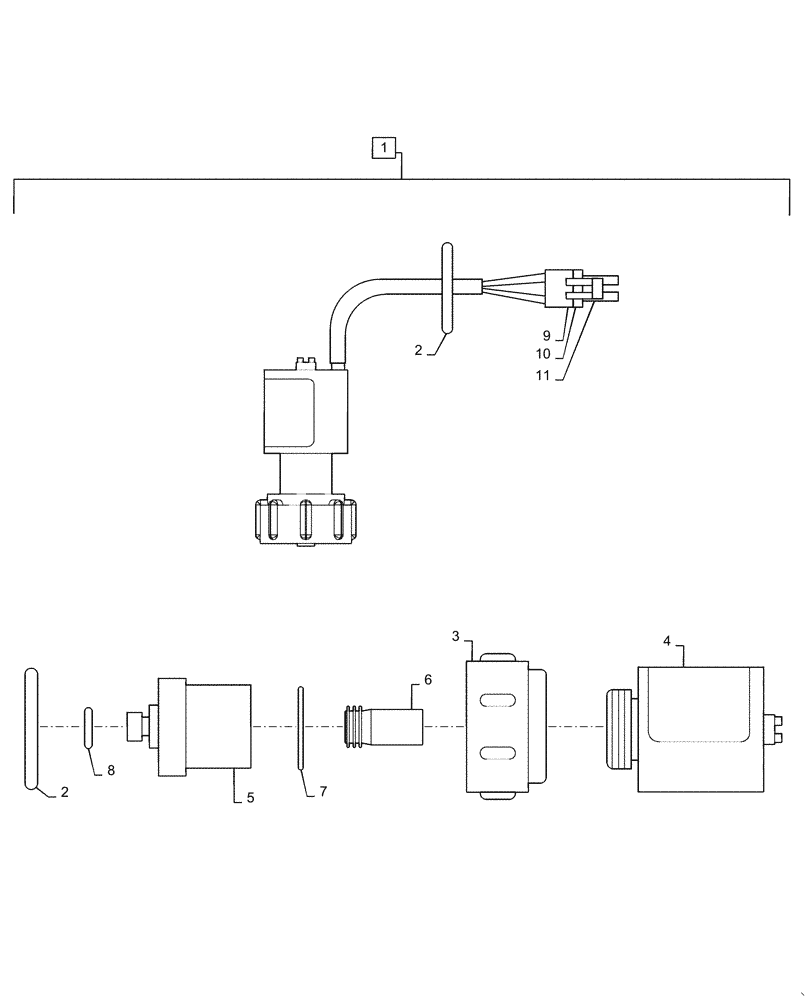

Запчасти Case IH PATRIOT 4440 (55.635.AB[02]) - AIM COMMAND, AIM COMMAND PRO, WILGER SOLENOID (55) - ELECTRICAL SYSTEMS

1

87271452

SOLENOID

Aim Command, Wilger, Complete, Incl 2 - 11

1шт.

1

87271452R

REMAN-SOLENOID

Aim Command, Wilger, Complete, Incl 2 - 11

1шт.

1

87271452C

CORE-SOLENOID

Return Number

1шт.

2

87266194

O-RING

Wilger, 116 Viton

1шт.

3

84249092

CAP

Wilger, Flynut

1шт.

4

87272502

SOLENOID

Coil Assembly, 7W, Overmolded

1шт.

5

87272501

VALVE BODY

Grip, Wilger

1шт.

6

87272503

PLUNGER

Assembly, PFE

1шт.

7

87272504

O-RING

0.015, Viton

1шт.

8

87272505

O-RING

0.008, Viton

1шт.

9

245482C1

ELEC CONNECTOR,2 Pin

Weather Pack, Female 2 Pin

1шт.

10

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Socket, 14-16awg

2шт.

11

225124C1

SEAL,2 - 2.9 mm2

Green

2шт.
