Запчасти Case IH PATRIOT 4440 (55.515.AL[07]) - AUTOBOOM CONTROL KIT, 120 BOOM, BSN YGT044001 (55) - ELECTRICAL SYSTEMS

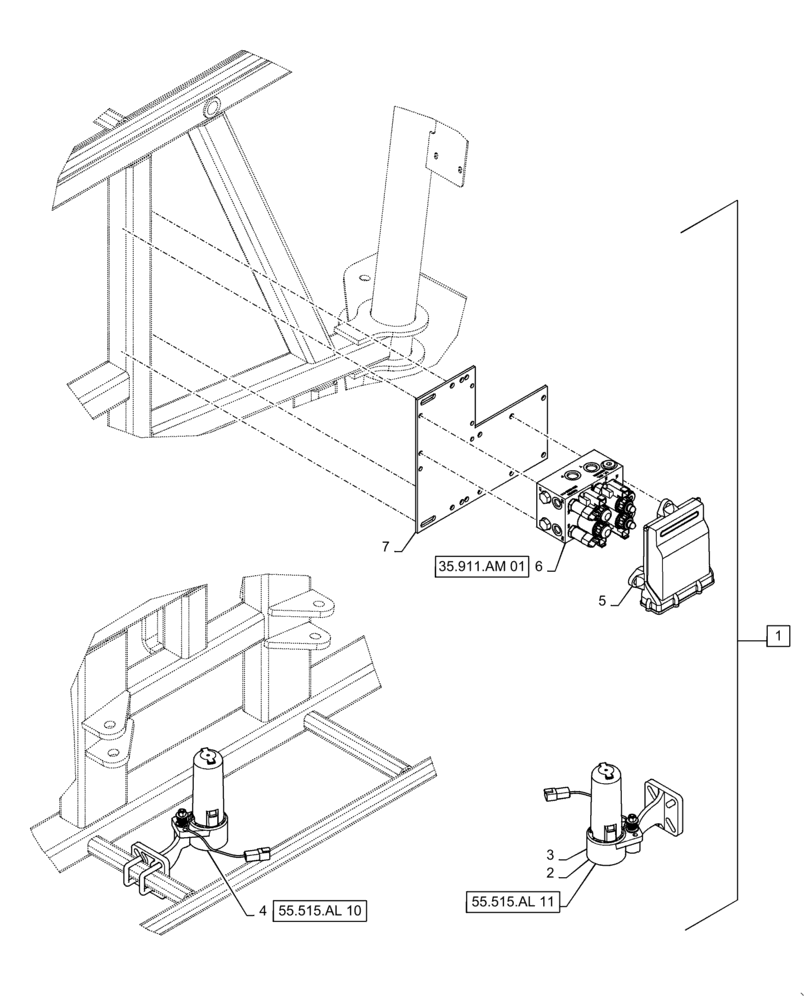

Схема запчастей Case IH PATRIOT 4440 - (55.515.AL[07]) - AUTOBOOM CONTROL KIT, 120 BOOM, BSN YGT044001 (55) - ELECTRICAL SYSTEMS
7
55.515.al 11
4
3
5
1
35.911.am 01
2
55.515.al 10
6

Артикул

Название

Примечание

Количество

1

84247474

SERVICE KIT

Autoboom Control, 120', Incl 2 - 11

1шт.

2

87710685

SENSOR

Ultrasonic, RH

1шт.

3

87710686

SENSOR

Ultrasonic, LH

1шт.

4

84247475

SENSOR

Ultrasonic, Digital, 4 Pin, Center

1шт.

5

87717349

MODULE

Autoboom Node, CAN Control

1шт.

5

87717349R

REMAN-MODULE

4430 - PATRIOT SPRAYER TIER 4 - 9/11-

1шт.

5

87717349C

CORE-MODULE

Return Number

1шт.

6

84299098

HYDRAULIC VALVE

Autoboom

1шт.

7

87718266

MOUNTING PLATE

Autoboom Node and Hydraulic Valve

1шт.

8

87718980

CABLE

70' Extension, Ultrasonic Sensor, 120' Boom, Not Shown

2шт.

9

84142277

WIRE HARNESS

Autoboom Control, 120' Boom, Not Shown

1шт.

10

87718974

SERVICE MANUAL

Autoboom Calibration, Not Shown

1шт.

11

87718973

SERVICE MANUAL

Autoboom, Case IH, Not Shown

1шт.

12

87718981

CABLE

30' Extension, Ultrasonic Sensor, Used with Extra Sensors, Not Shown

1шт.

Выбрано товаров: 14
